User Guide

Orrery — read-this-first guide for the live app · v0.6.x · May 2026

Every screenshot in this guide comes from the production app at 1280×800. Click any image to open it full-size in a new tab.

---

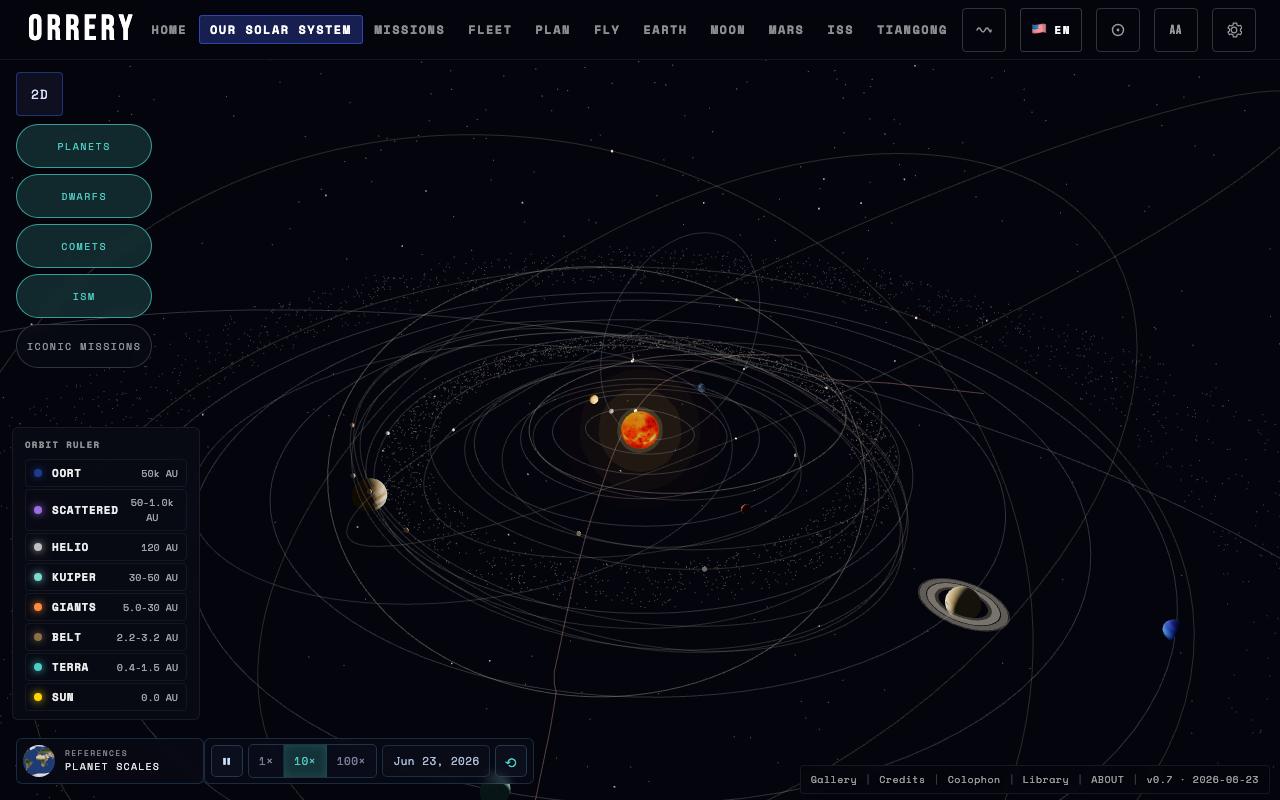

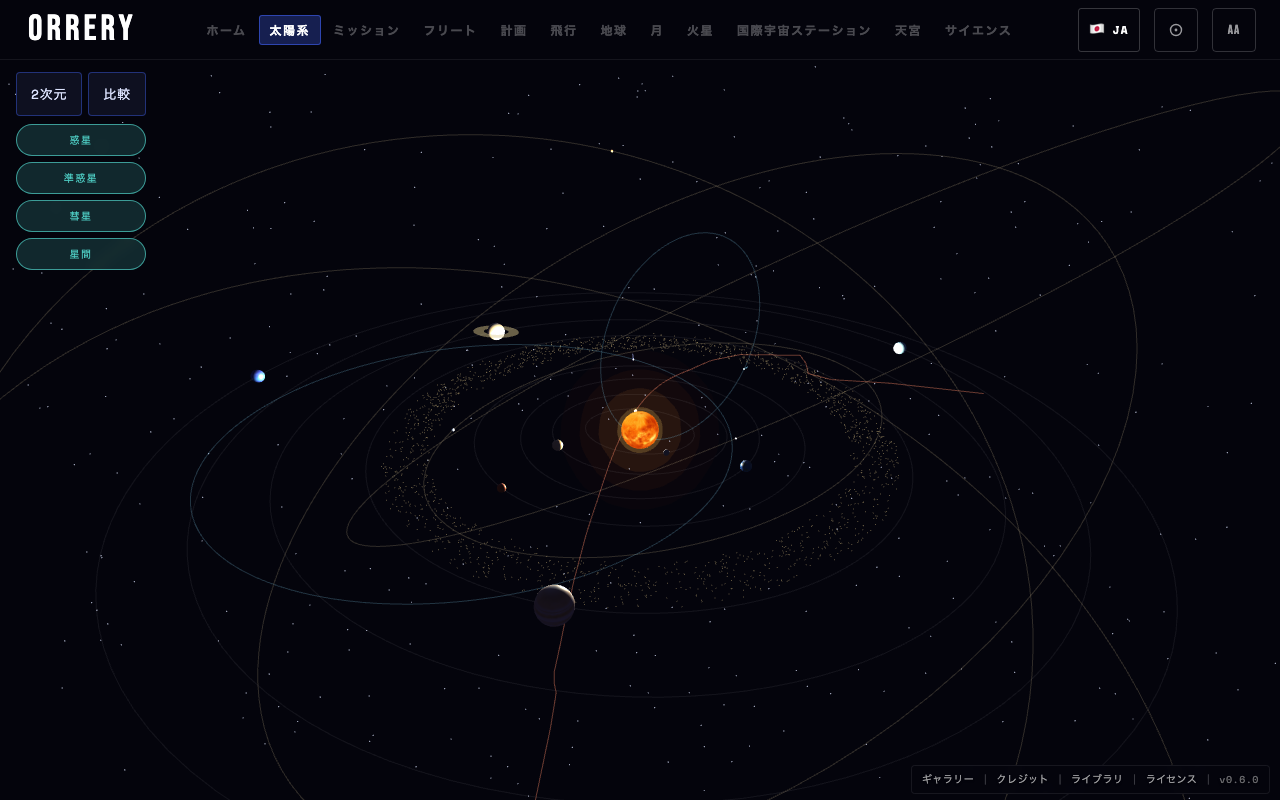

Switching language

A locale picker sits in the top-right of the navigation bar. The chip shows your country flag + the locale's short tag (e.g. 🇩🇪 DE). Click it to open the dropdown, pick your language, and the URL updates to ?lang=<code>. Bookmark the URL to lock your locale; share it and your reader gets the same.

There is no localStorage and no cookie — the URL is the only place your locale lives. On a fresh visit the browser language is sniffed (navigator.language) and applied automatically; if it doesn't match a supported locale, English is the default.

Currently shipped — 14 languages, all at 100% UI parity:

Locale	Native name	Notes
en-US	English	Source language
es	Español	First non-English locale (v0.3.0)
fr	Français
de	Deutsch
pt-BR	Português (BR)
it	Italiano
nl	Nederlands	Added v0.5.x (issue #72)
zh-CN	中文 (简体)
ja	日本語
ko	한국어
hi	हिन्दी	Devanagari
ar	العربية	RTL — flips the entire layout
ru	Русский	Cyrillic
sr-Cyrl	Српски	Serbian Cyrillic

The /science encyclopedia overlay tree is translated end-to-end across all 14 locales. Editorial entity overlays (missions, planets, sites, modules) are translated across all 14 locales for the v0.5.x rollout.

---

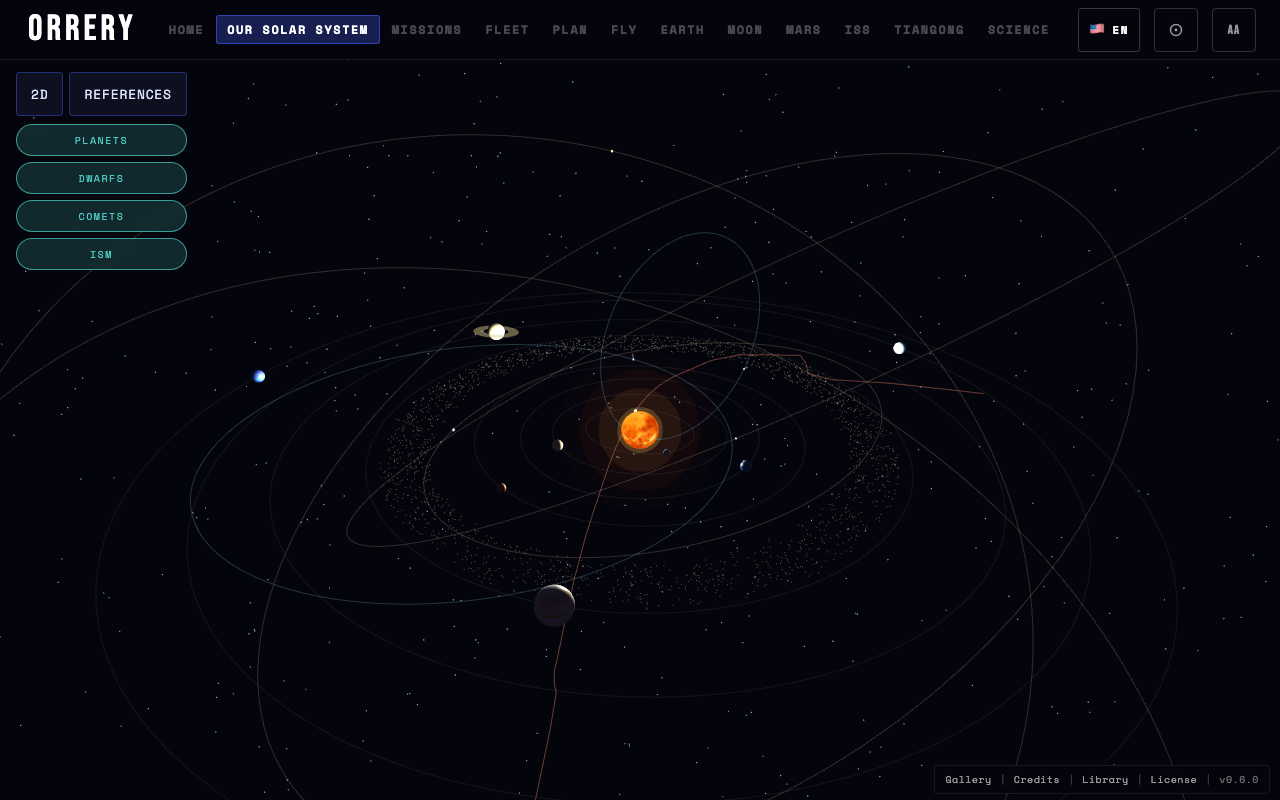

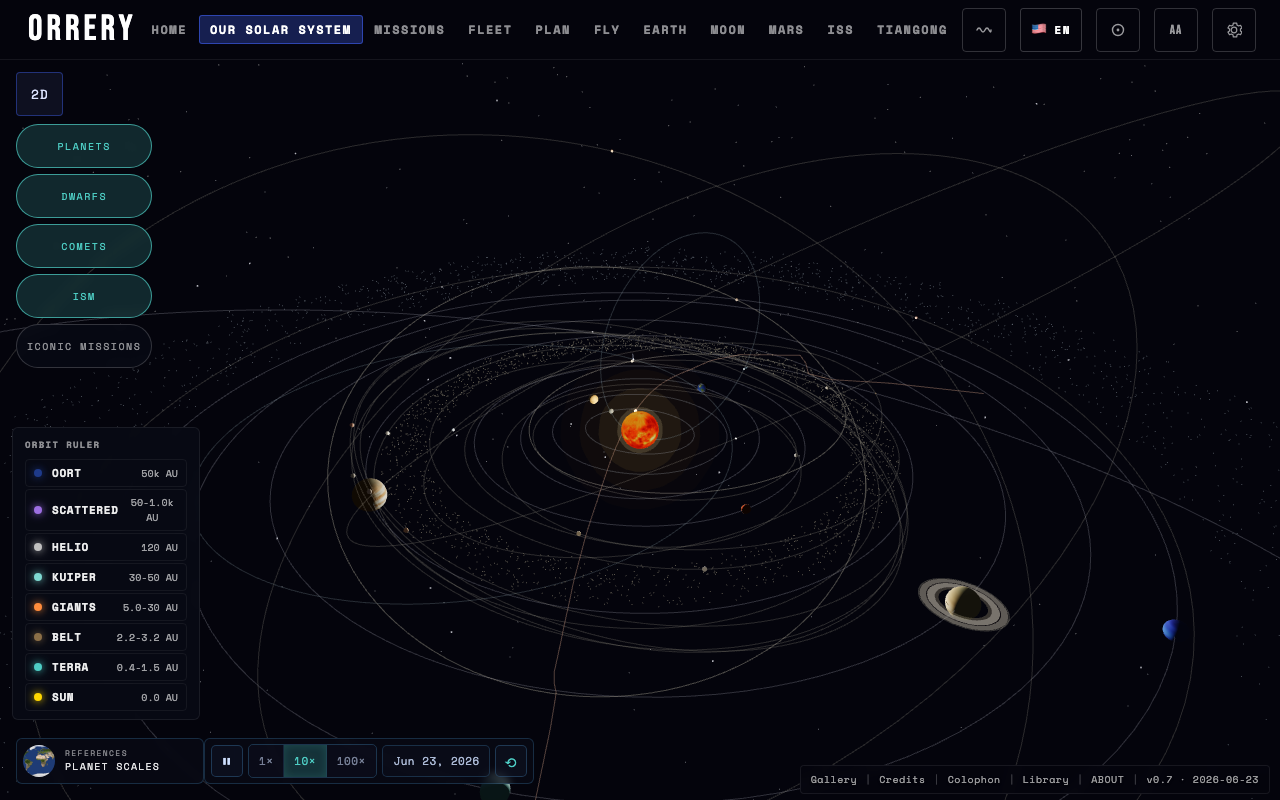

Solar System Explorer · /explore

A real-time 3D / 2D orrery showing 8 planets, 5 dwarf planets, 2 comets, and ʻOumuamua (the only confirmed interstellar object).

What you can do:

• Drag the 3D scene to orbit around the Sun.
• Scroll / pinch to zoom.
• Click any body — Sun, planet, dwarf, comet, ʻOumuamua — to open its detail panel with OVERVIEW · GALLERY · TECHNICAL · SCIENCE tabs.
• Hover in 3D for a velocity tooltip (mean orbital velocity via vis-viva).
• 2D toggle (top right) — switches to a top-down 2D plot of the ecliptic plane.
• REFERENCES toggle — opens a true-relative-size diorama of the planets.
• LAYERS toggle — show / hide PLANETS · DWARFS · COMETS · INTERSTELLAR independently. Hidden bodies aren't clickable.

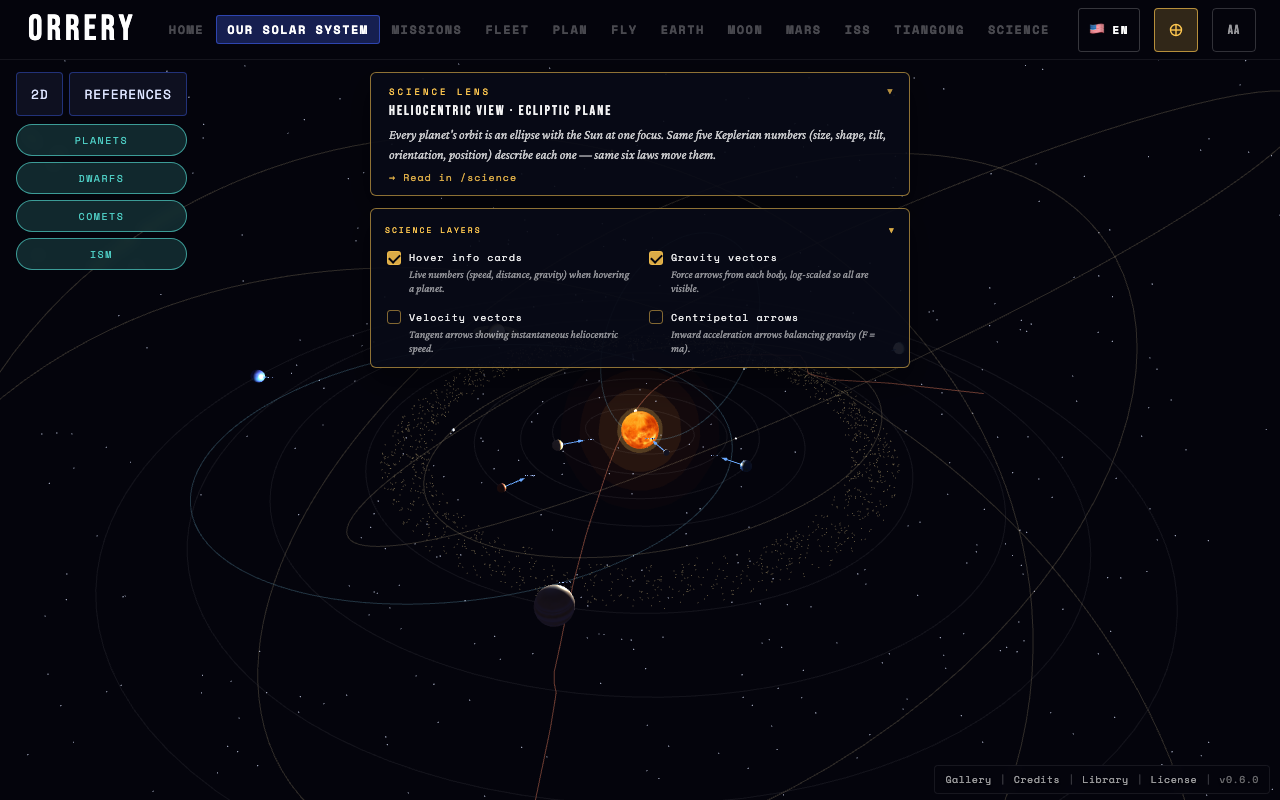

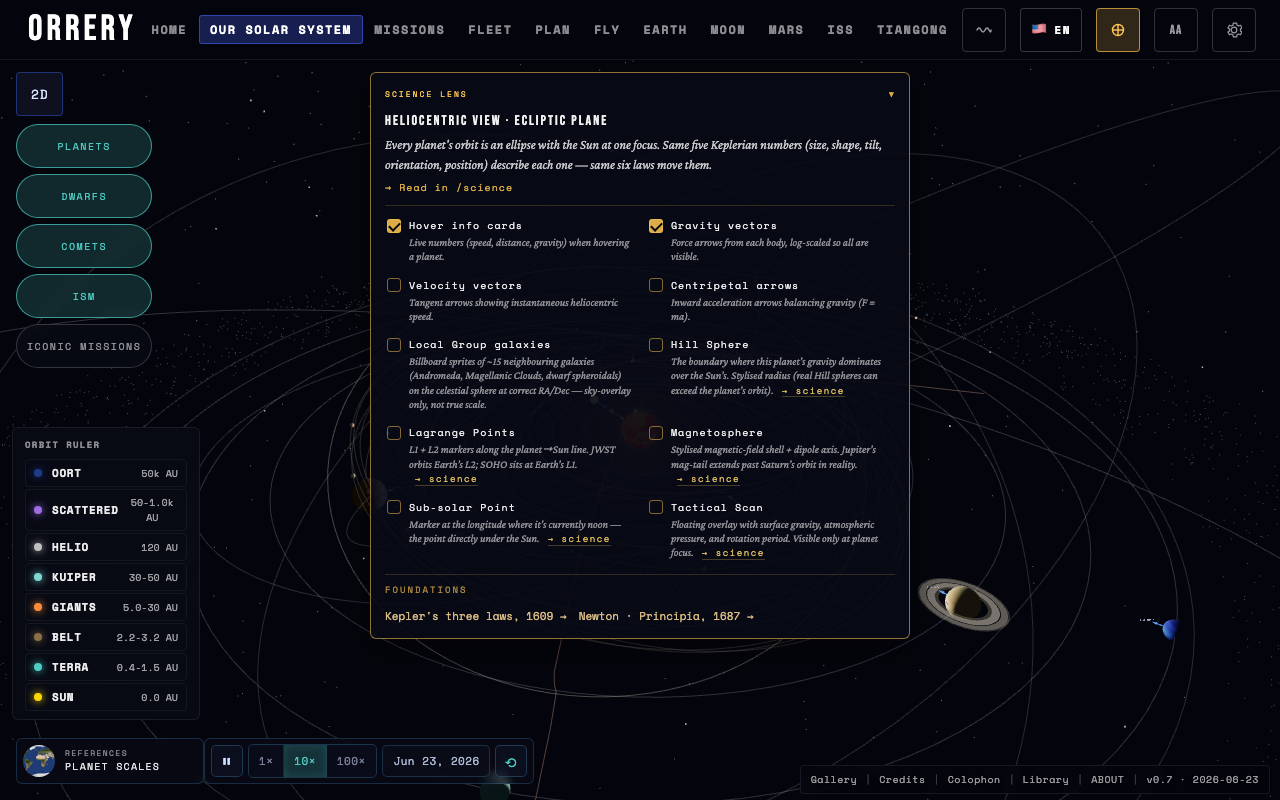

Turn on the Science Lens (the lens icon in the nav) and the scene becomes a textbook layer:

A Science Lens banner above the canvas explains the current view in plain language; a Science Layers panel lets you toggle individual physics layers (gravity vectors, velocity vectors, centripetal arrows, apsides + true anomaly, sphere-of-influence rings, hover info cards). Layer values print at arrow tips so you can compare magnitudes across planets.

---

Mission Configurator · /plan

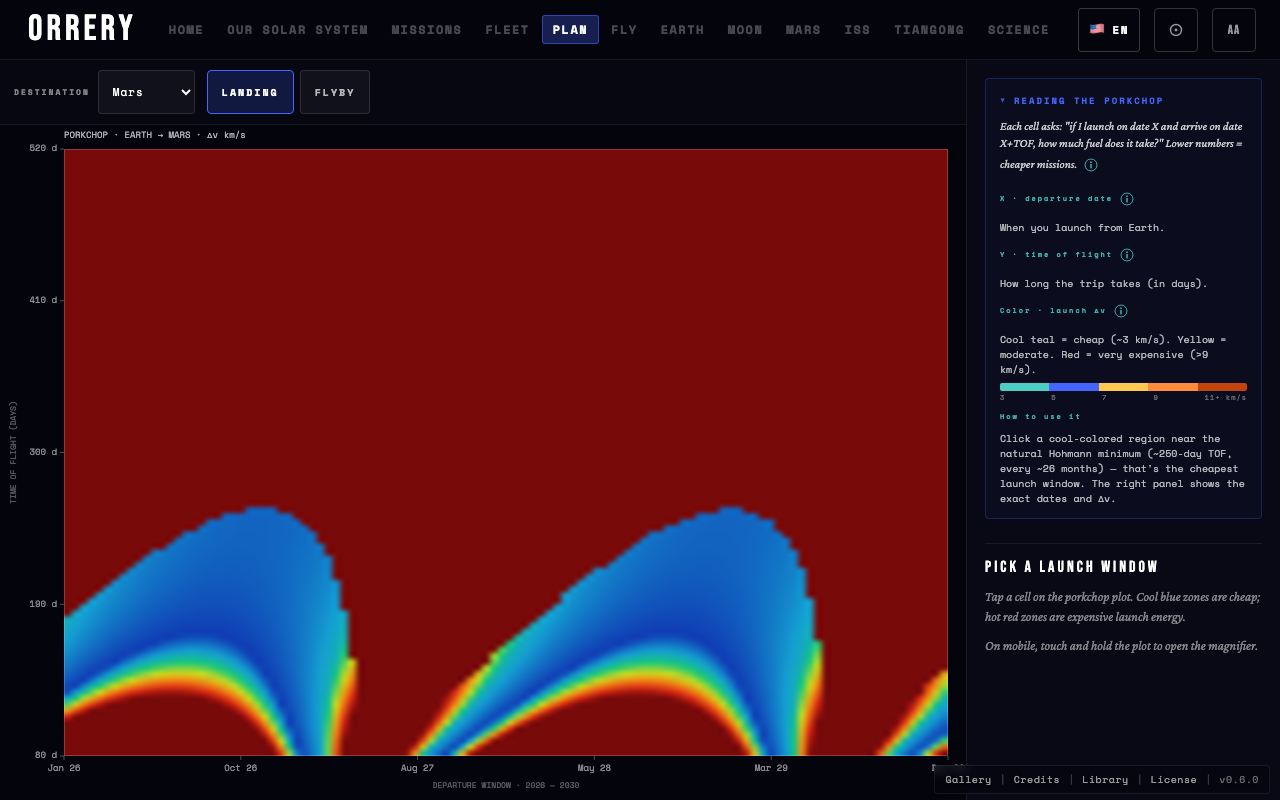

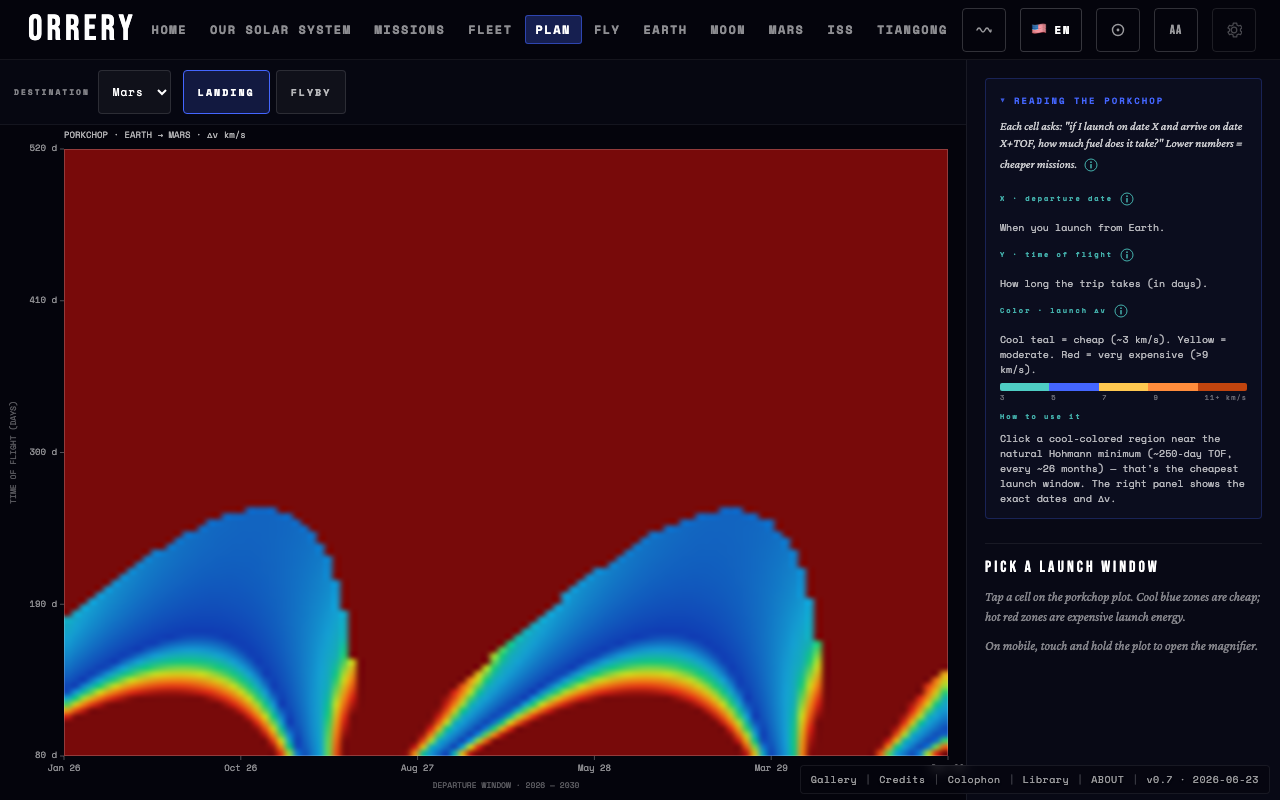

The Lambert porkchop plot. Pick a destination + mission type (LANDING or FLYBY). Each destination uses a pre-computed 112×100 grid (11,200 cells) checked in at static/data/porkchop/ and loaded by the app at runtime — the Lambert Web Worker stays in the bundle for future custom-range work but is not what paints the default Mercury–Pluto maps. Cool teal cells are cheap launch windows; red cells are expensive.

What you can do:

• Click any cell to read the exact dep / arr dates, transit, and ∆v.
• Pick a vehicle from 13 launch rockets — the panel computes vehicle ∆v vs required ∆v and shows margin or deficit.
• ▶ FLY MISSION — opens /fly with your selected dep / arr / vehicle baked into the URL.
• Mobile: long-press the porkchop for a magnifier loupe.

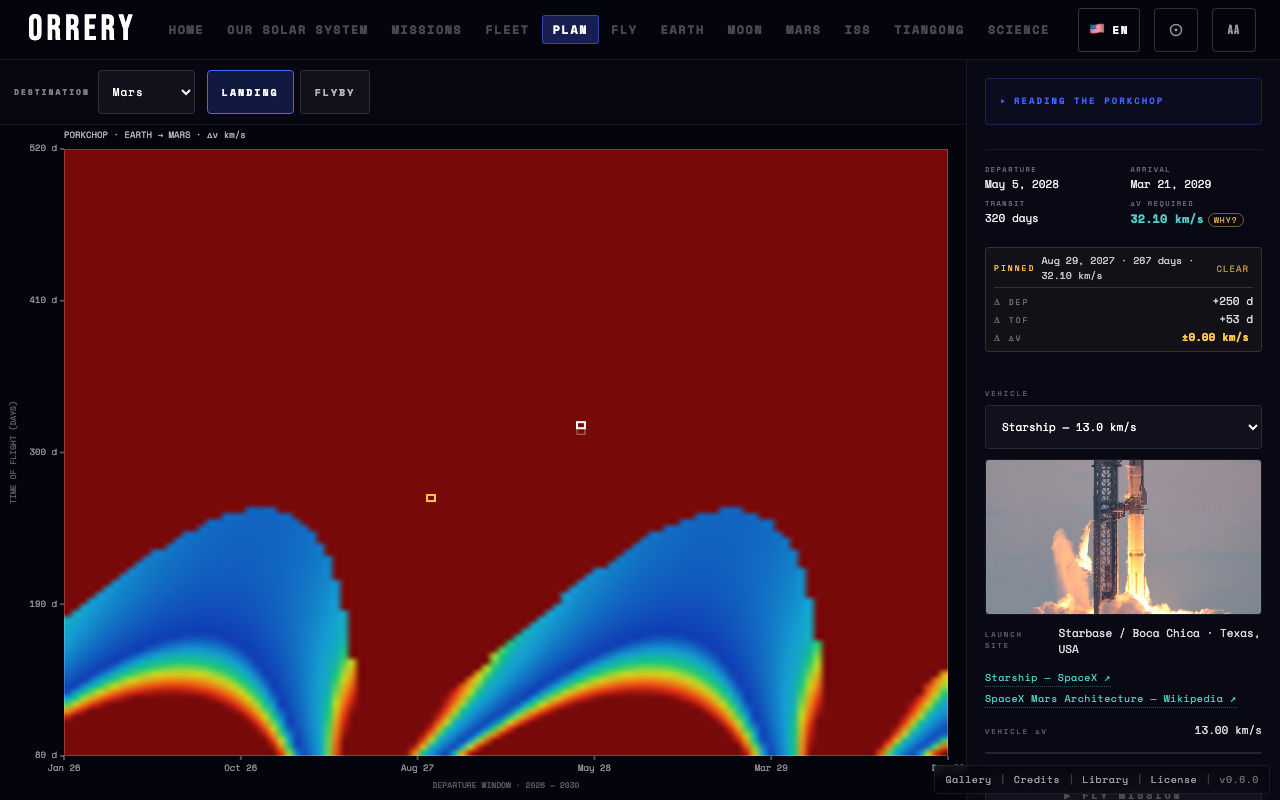

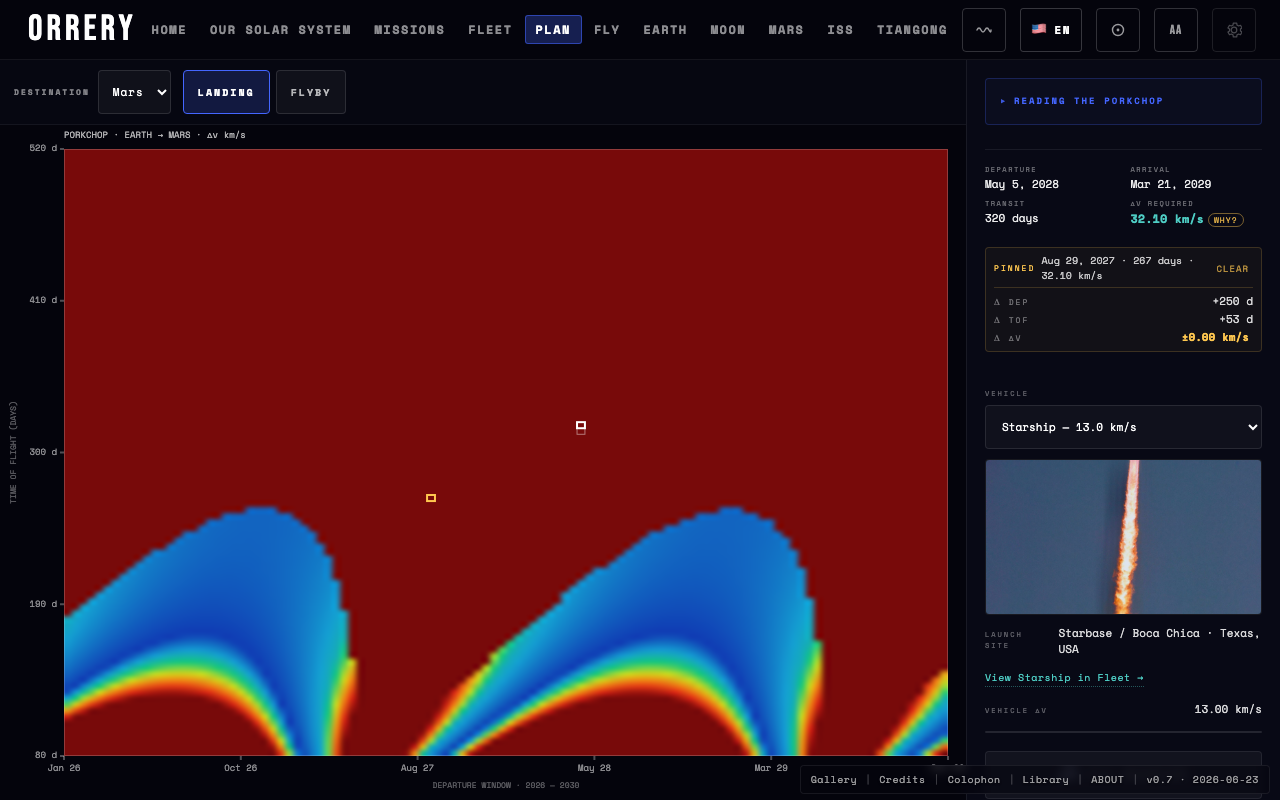

Mission Sandbox (lens on or off — always available): pin one cell with 📌 PIN THIS CELL, then click another cell. The compare panel shows ΔDEP, ΔTOF, and Δ∆v (green chip when the new cell is cheaper, gold when more expensive). Pin clears automatically when you change destination.

---

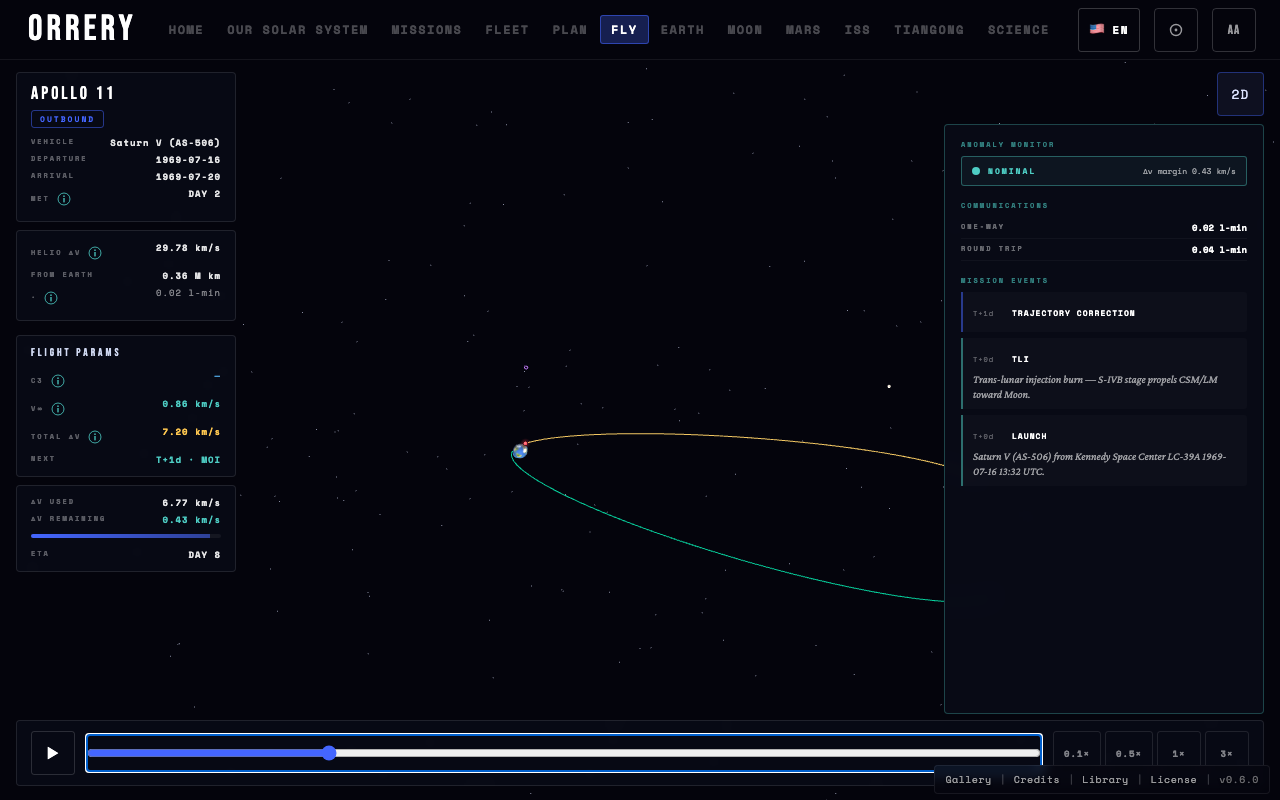

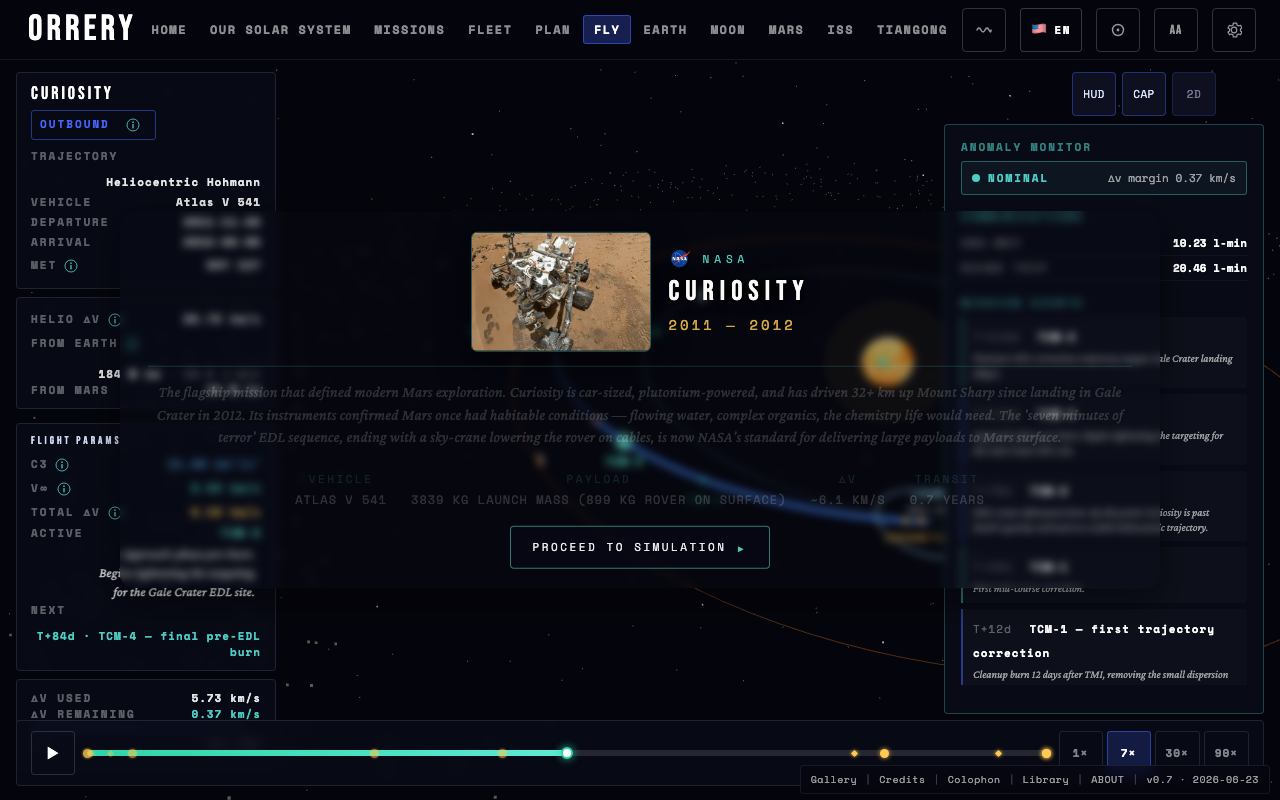

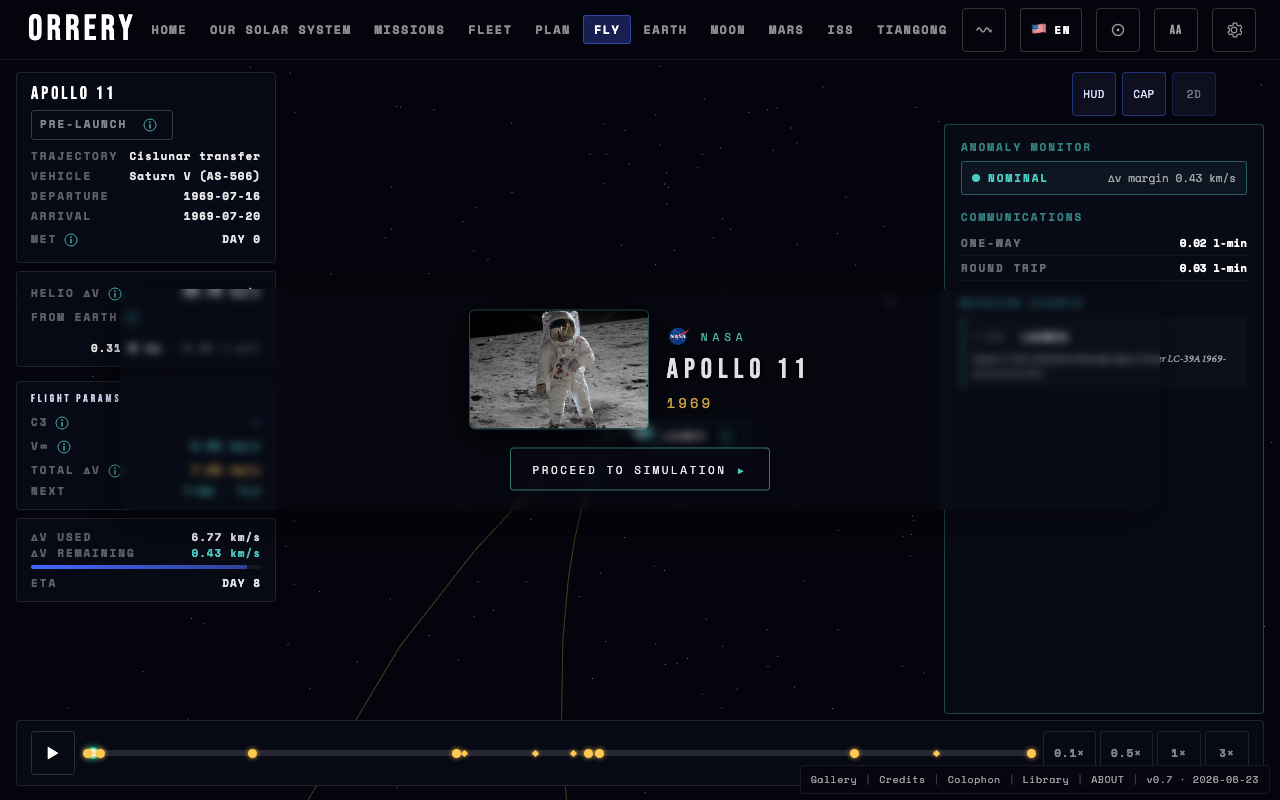

Mission Arc · /fly

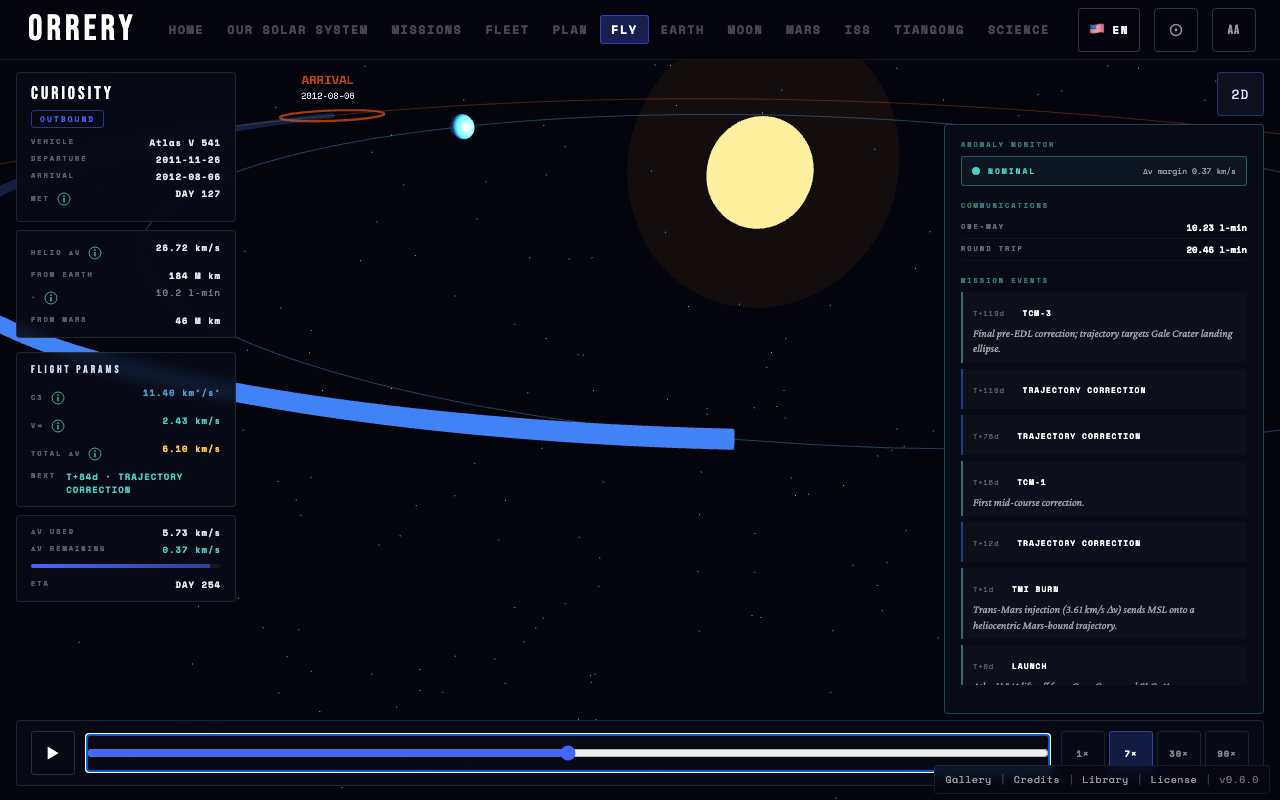

The mission visualisation. Earth, the destination, and the spacecraft animate live; the trajectory tube uses a true two-point Keplerian ellipse with Sun at focus, so both endpoints lock to live planet positions.

What you can do:

• Scrub the timeline — bottom bar — to fly the mission from launch to arrival.
• ▶ / ⏸ + speed pills — autoplay at 1× / 7× / 30× / 90× (Mars-class missions) or 0.1× / 0.5× / 1× / 3× (lunar).
• 2D toggle — switch between the 3D scene and a top-down 2D view.
• CAPCOM panel (right) — live mission events (TLI, TCM, EDL, etc.) tick by as you scrub.
• Pre-built missions: try /fly?mission=<id> for any of the 37 missions in the catalog.
• Lunar missions (Apollo, Artemis II, Blue Moon, Chang'e, Chandrayaan, Luna, SLIM) auto-open in a dedicated cislunar view (ADR-058) anchored at Earth, rendering each mission's actual flight architecture — Apollo free-return figure-8 with parking orbit + lunar orbit + descent, Artemis II hybrid free-return at 9 200 km periselene, Chandrayaan-3 multi-burn Earth spiral + lunar spiral + descent, Chang'e 5 lunar-orbit-rendezvous sample-return, etc. The camera zooms in as the spacecraft approaches the Moon and pulls back as it leaves.

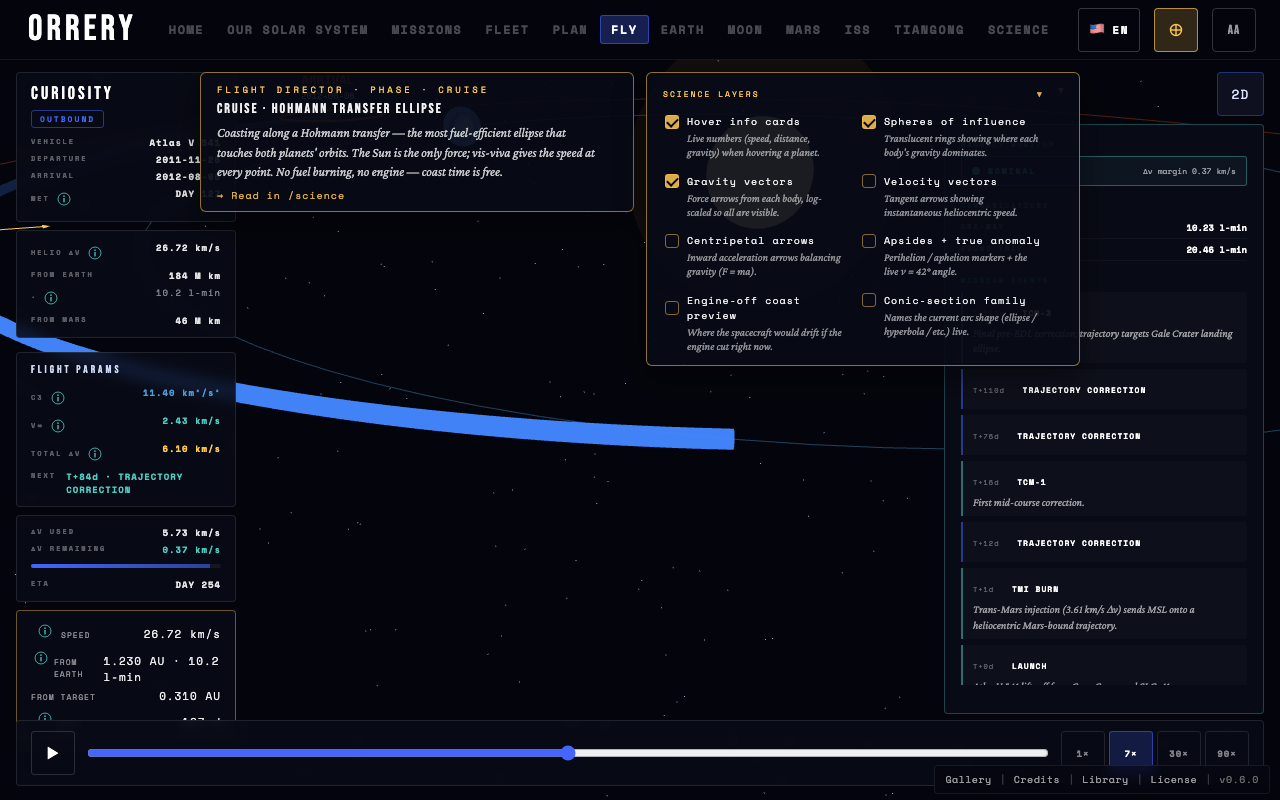

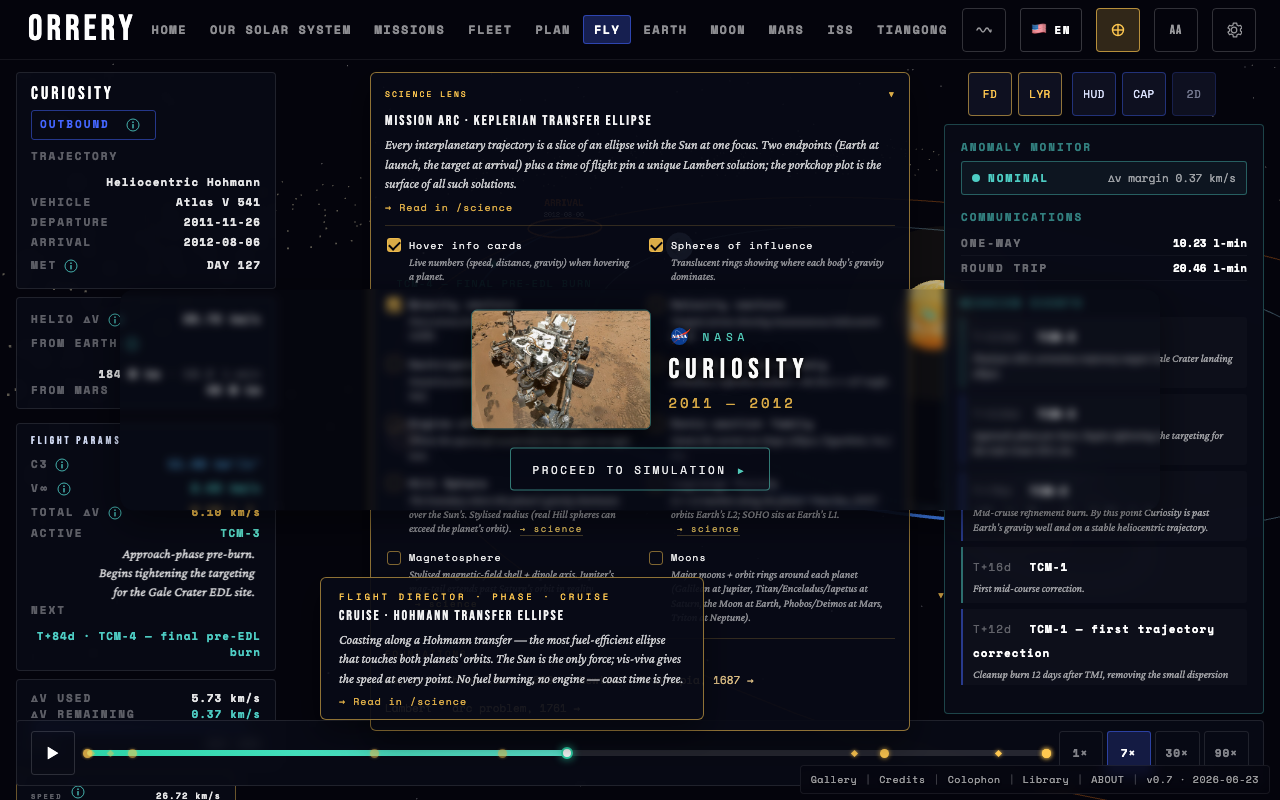

Turn on the Science Lens for the Flight Director banner — a 5-phase narration that flips through the mission as you scrub:

Phase	What it explains
DEPARTURE	C3 launch energy, leaving Earth's gravity well
TRANS-X INJECTION	The biggest single ∆v of the trip — TLI for Moon, TMI for Mars
CRUISE	The Hohmann transfer ellipse, vis-viva at every point
APPROACH	V∞ excess speed, minimum braking ∆v before insertion
ARRIVAL	Hyperbolic capture into a closed orbit

Each phase title is a deep link into the matching /science chapter. The lens also unlocks a Conic-section side panel in the bottom-right that classifies the current arc shape (circle / ellipse / parabola / hyperbola) live from specific orbital energy.

---

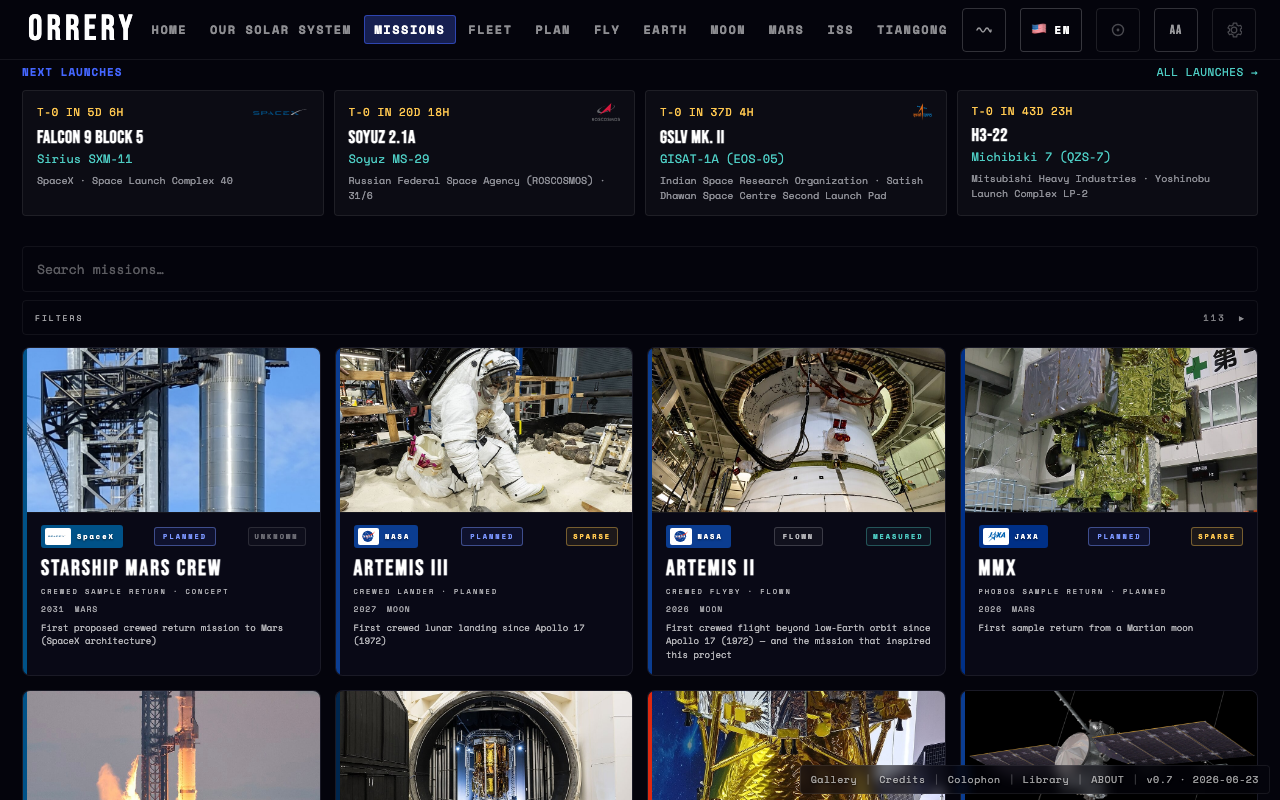

Mission Catalog · /missions

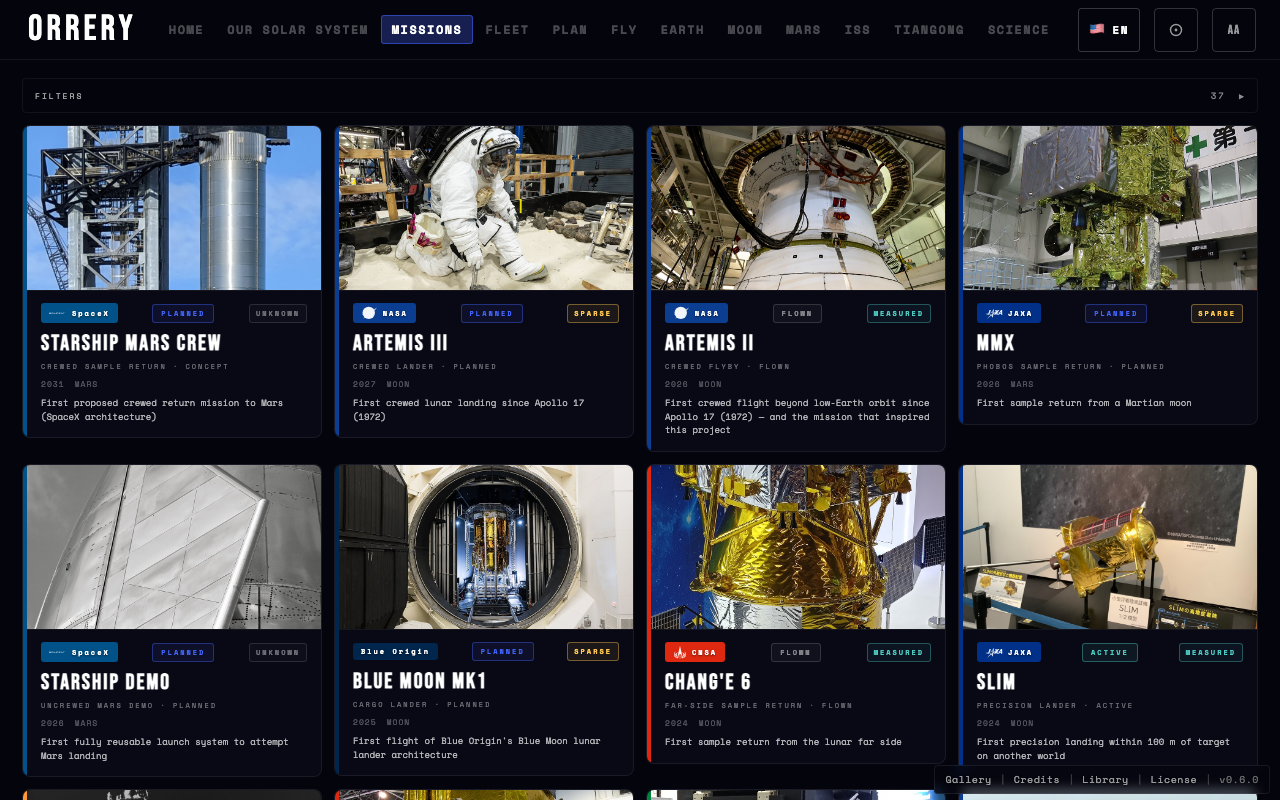

All 37 missions in the dataset. 16 Mars + 17 Moon + 4 outer-system entries (Galileo, Voyager 2, New Horizons, Dawn), spanning Mariner 4 (1964) through Starship Mars Crew (concept). The page was previously called "Mission Library"; it was renamed to Mission Catalog under ADR-051 to free the word Library for the outbound-link inventory at /library.

What you can do:

• FILTERS ▸ toggle at the top — expands the timeline navigator + filter pills (collapsed by default for a clean grid). When you land via a deep link with filter params (?dest=MARS, ?from=1969, etc.) the strip auto-expands so you can see what's active.
• Filter by destination / agency / status.
• Timeline navigator — scrub the year window (1957 → 2035) to narrow the set.

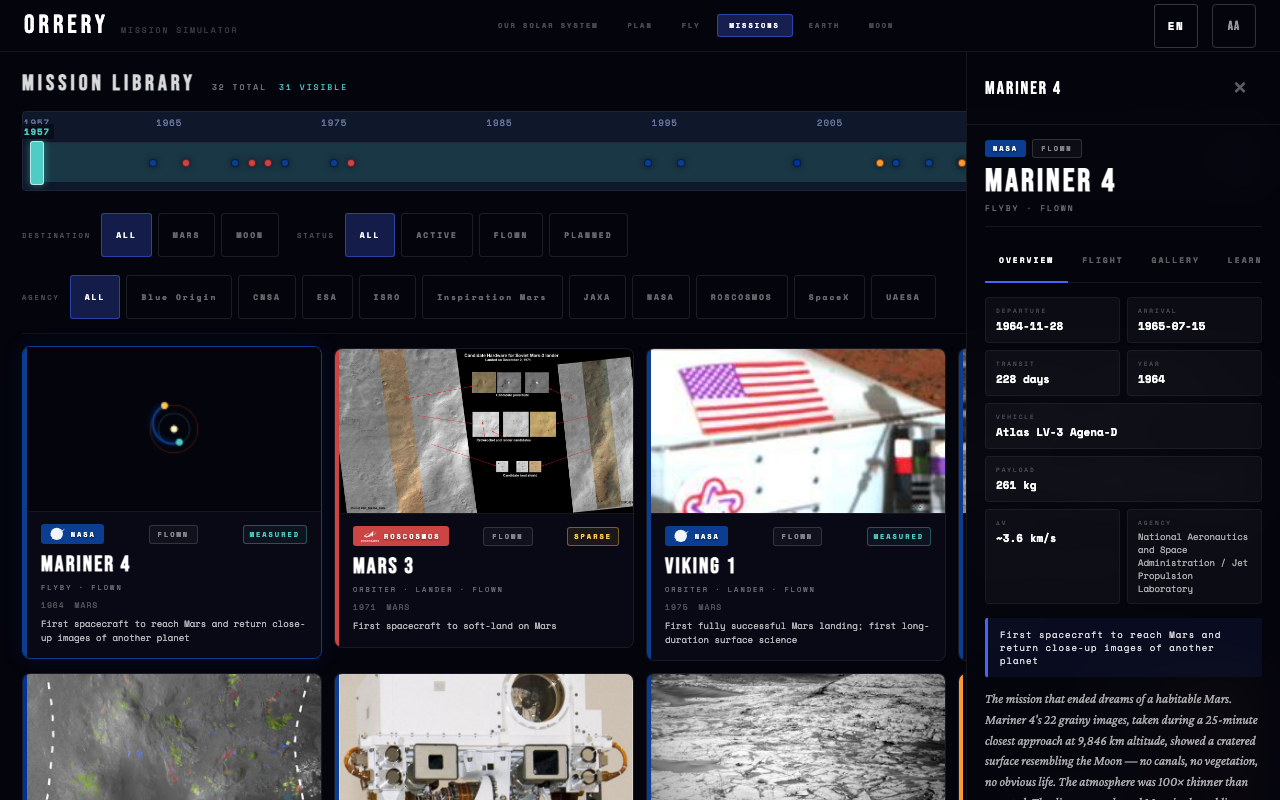

• Click any card — opens a detail panel with OVERVIEW · FLIGHT · GALLERY · LEARN · SCIENCE tabs.
• ▶ FLY from any panel — jumps to /fly?mission=<id>.
• FLIGHT tab carries per-mission ∆v ledgers, with caveat banners (RECONSTRUCTED / SPARSE / UNKNOWN) when the public data is incomplete.

---

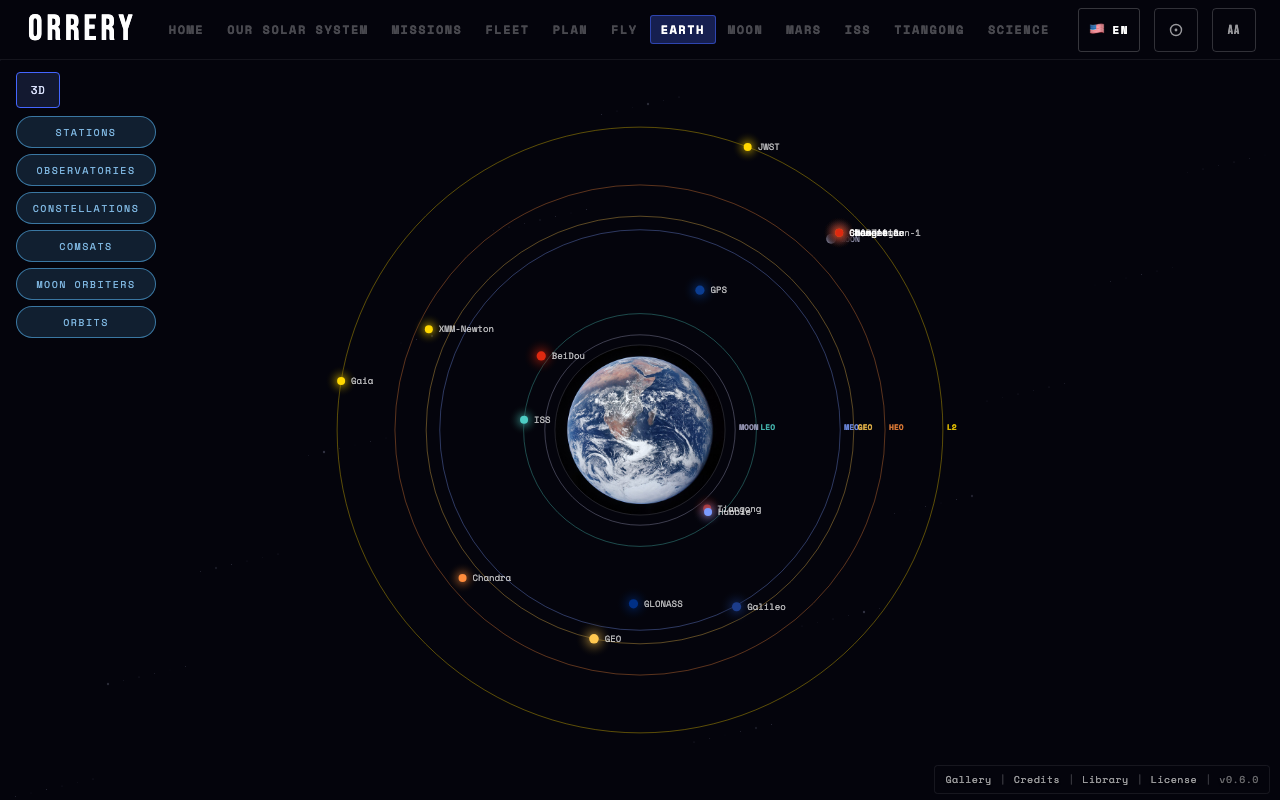

Earth Orbit · /earth

Logarithmic radial scale showing the infrastructure that surrounds Earth: ISS, Tiangong, Hubble, JWST, Gaia, Chandra, XMM-Newton, LRO + the four GNSS constellations (GPS, Galileo, GLONASS, BeiDou) + GEO ring.

What you can do:

• 3D toggle — drag to orbit Earth; objects sit at their real inclinations.
• 2D toggle — top-down view with logarithmic radial spacing. ISS sits at one ring, GEO at another, JWST near the L2 marker.
• Click any object — detail panel with launch / period / inclination / crew / capability fields, plus GALLERY · LEARN · SCIENCE tabs.
• Layer chips (top-left) toggle visibility for stations · observatories · constellations · comsats · Moon-orbiters · orbits.

Lens layers: an atmosphere shell at the Kármán line (100 km) and ozone-hole indicators over both poles (Antarctic + Arctic depletion zones) appear when the Science Lens is on.

---

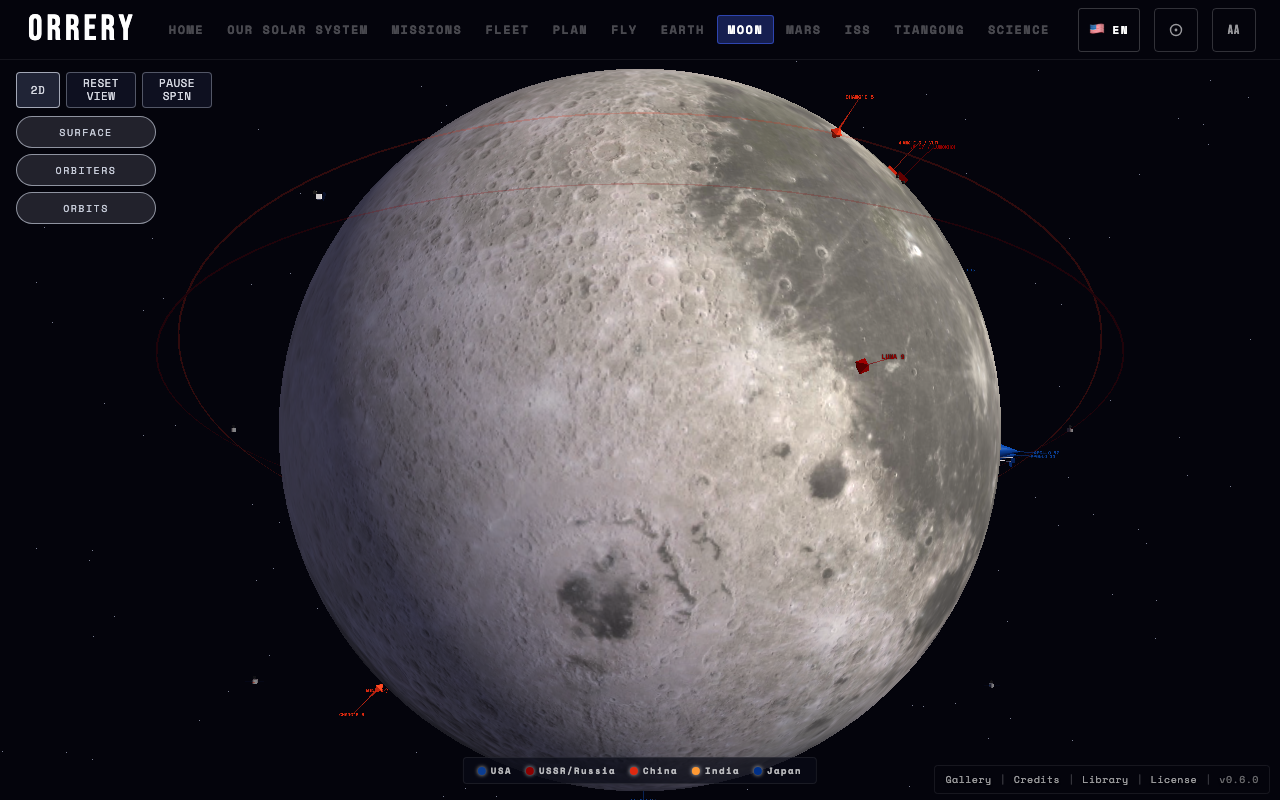

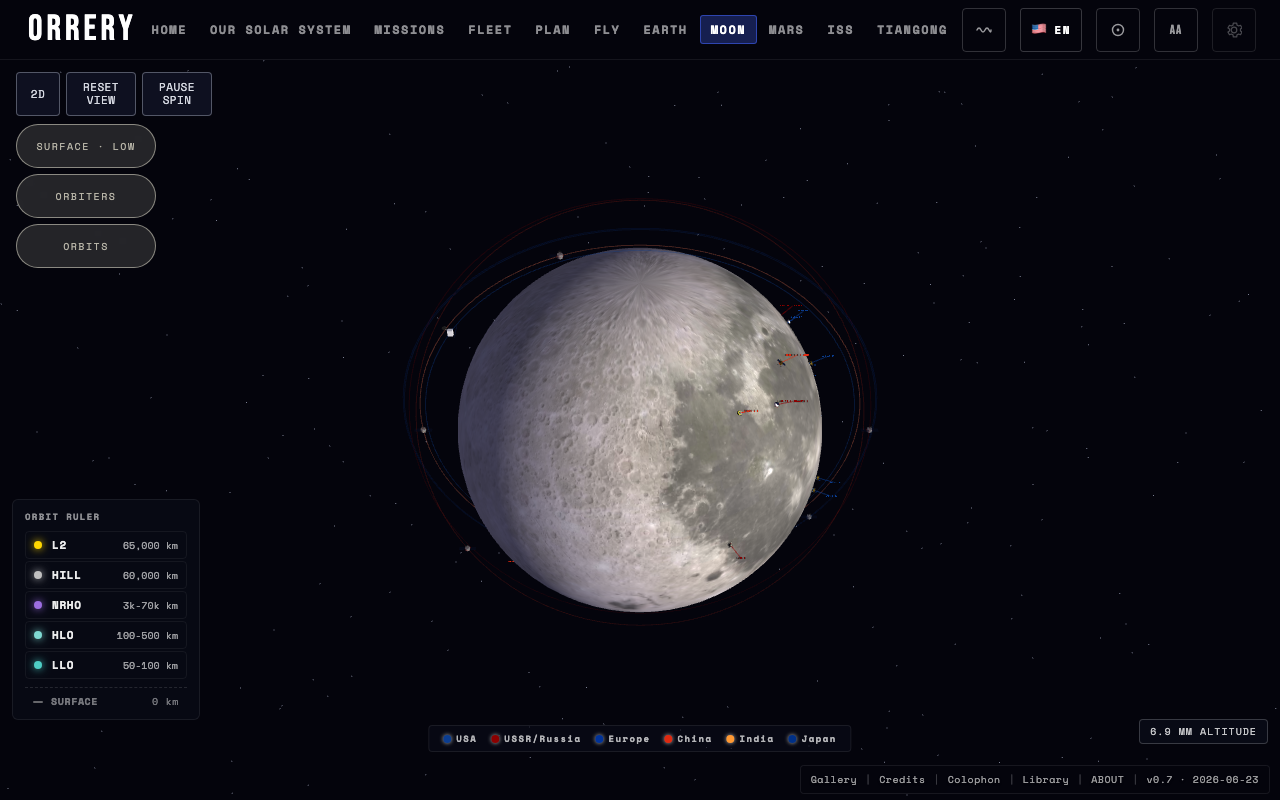

Moon Map · /moon

16 lunar landing sites across 5 nations, plotted by latitude / longitude on a 3D Moon globe and a 2D equirectangular projection.

What you can do:

• 3D Moon — drag to rotate, click any marker for site detail.
• 2D map — equirectangular projection; click any marker for the same panel.
• Site panel — OVERVIEW · GALLERY · LEARN · SCIENCE, plus mission-specific fields (crew, surface time, samples returned, capability unlocked).

Lens layer: tidal-lock indicator marks the Moon's near-side hemisphere (always Earth-facing — the result of synchronous rotation) when the Science Lens is on.

---

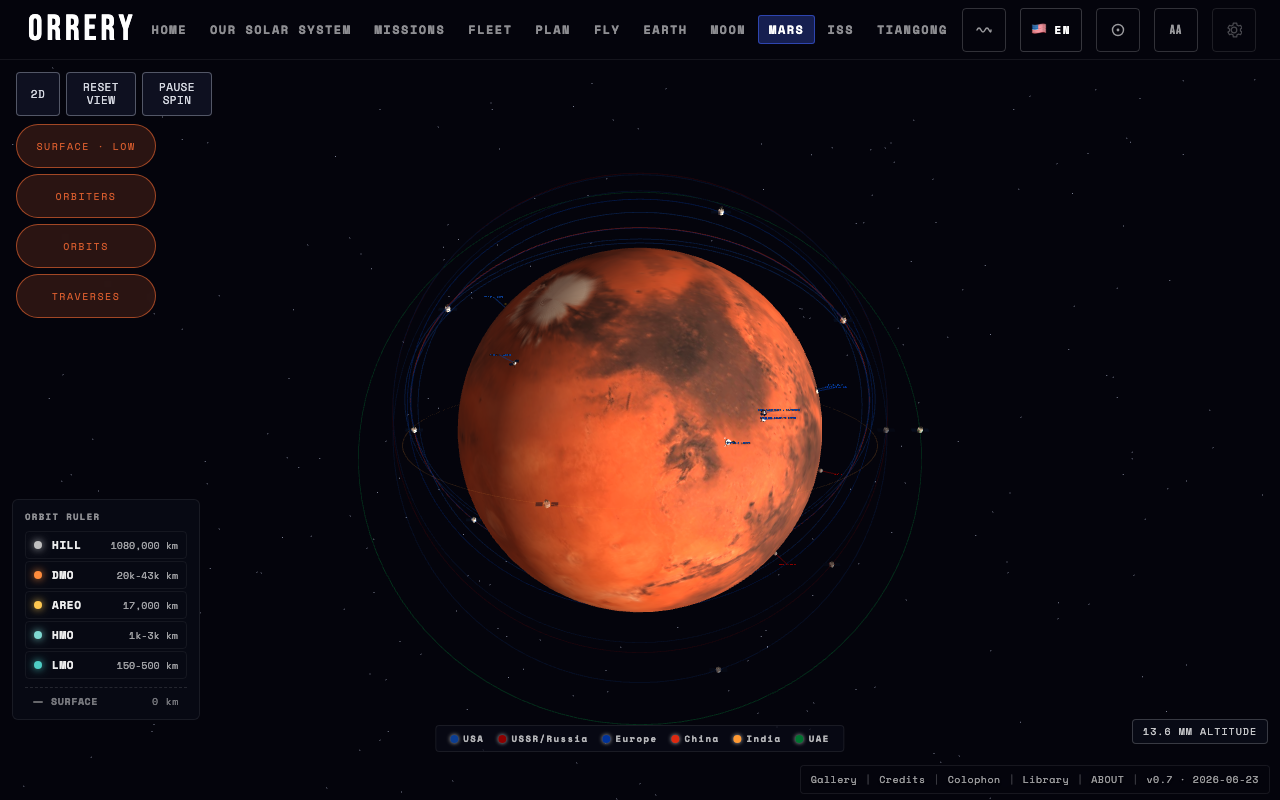

Mars Surface Map · /mars

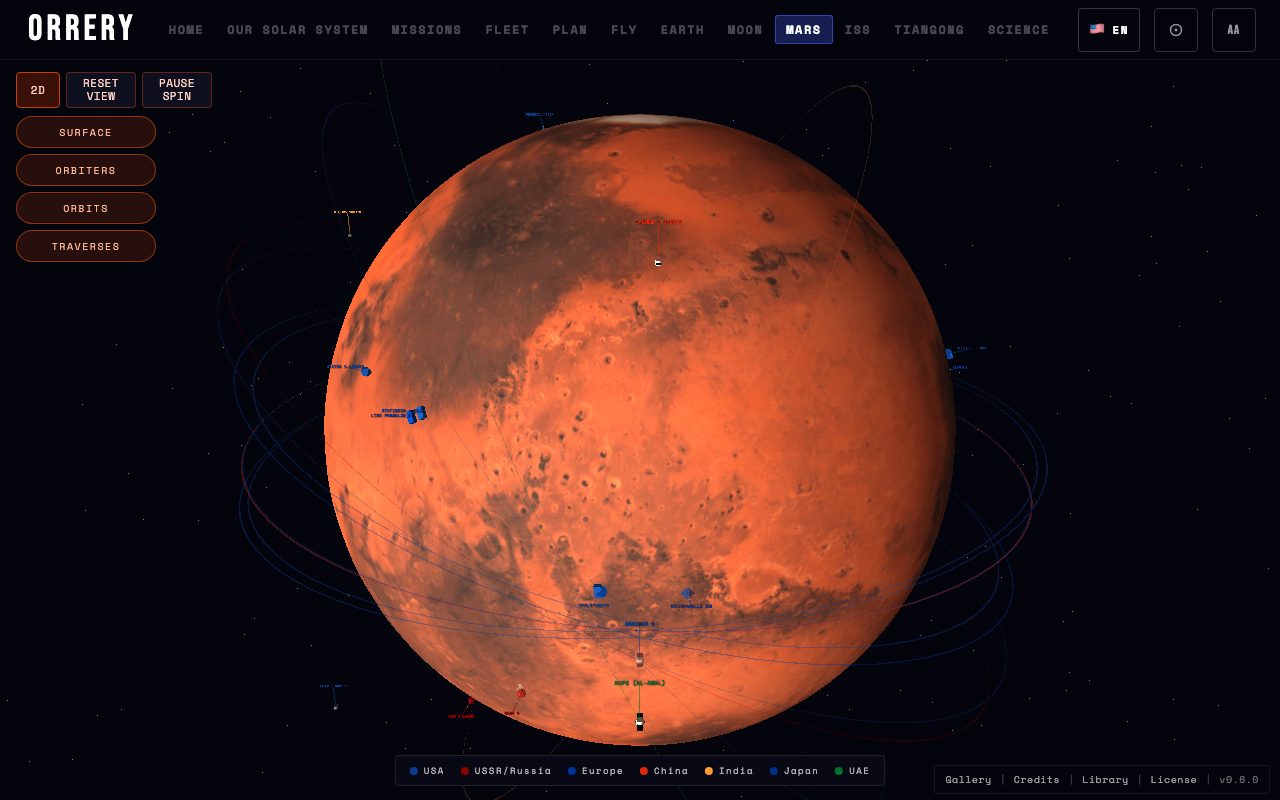

Equirectangular 2D map + 3D globe with surface-feature panels for landing sites, orbital probes, and major regions.

What you can do:

• 3D / 2D toggle — drag the globe in 3D or scrub a flat equirectangular projection.
• 16 surface sites (rovers, landers, sample-return) + 11 orbital probes, each clickable for a detail panel.
• Rover traverse paths overlaid as cross-linked routes on Curiosity, Perseverance, Opportunity, Spirit.
• Layer chips — toggle surface vs orbital separately.
• Lens layer: an atmosphere shell at ~120 km marks Mars's effective atmospheric edge.
• Cross-links: Curiosity / Perseverance panels deep-link to /missions/<id> for the full mission record.

---

ISS Explorer · /iss

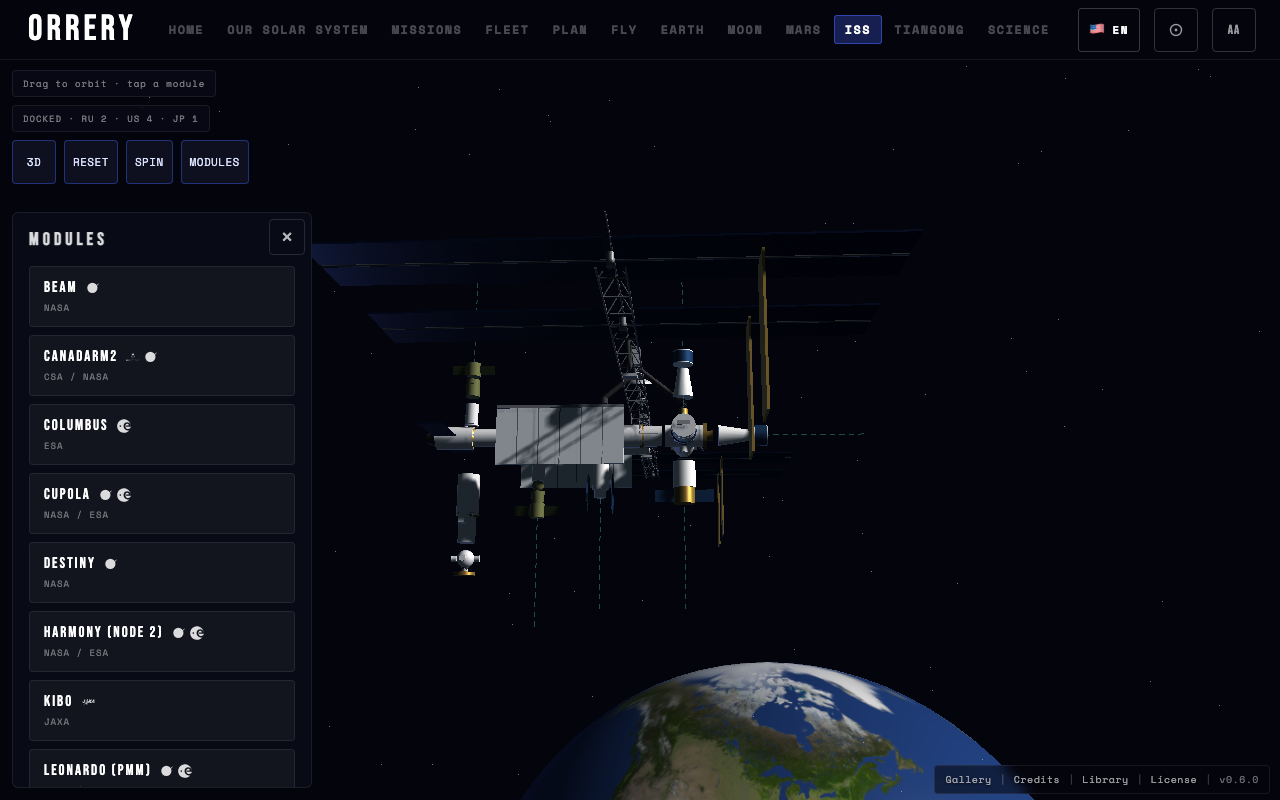

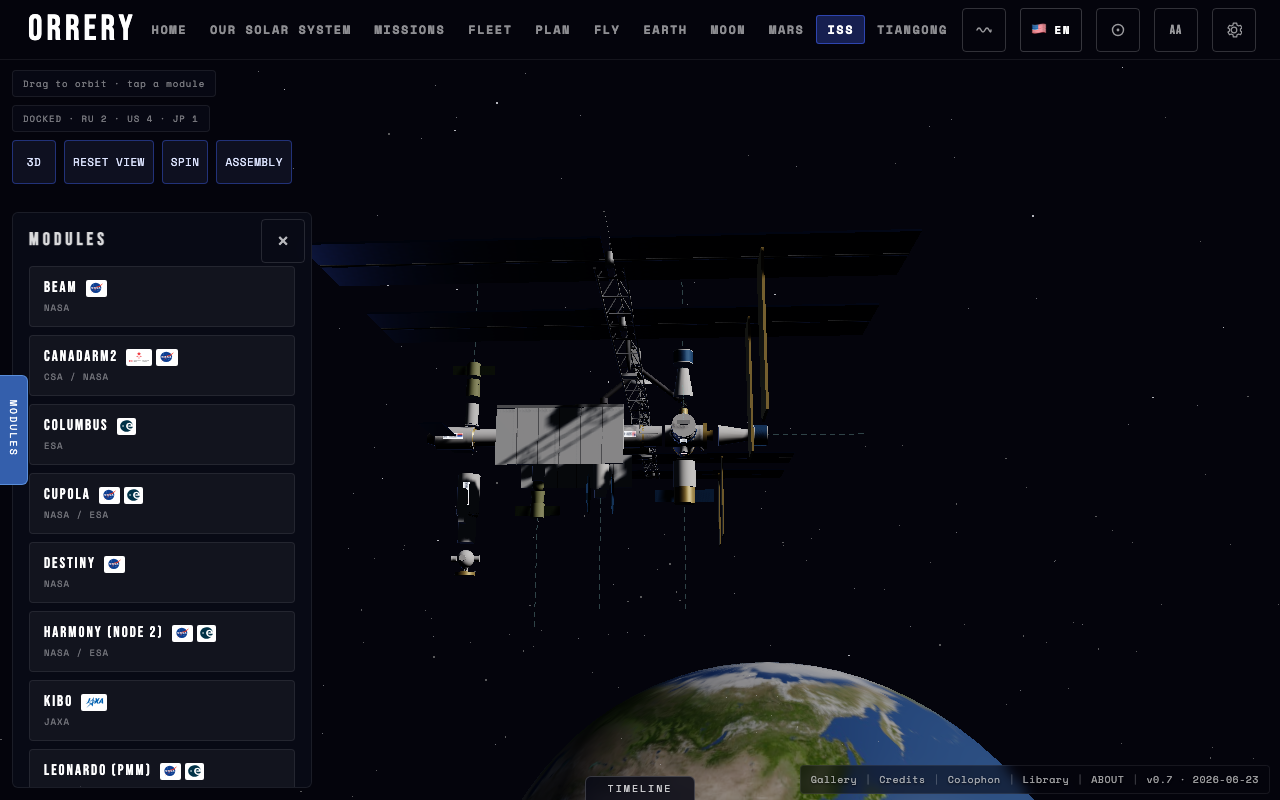

A full station-explorer route with raycast-pickable modules. 18 modules from every USOS + ROS module to visiting craft (Crew Dragon, Cargo Dragon, Soyuz MS, Cygnus, Progress MS, HTV-X, Starliner, Shenzhou, Tianzhou).

What you can do:

• Drag to orbit the station; scroll to zoom; right-drag (or two-finger drag on touch) to pan.
• Click any module — opens a detail panel with OVERVIEW · GALLERY · TECHNICAL · ANATOMY · SCIENCE · LEARN tabs.
• MODULES button — opens a drawer listing every module with its agency badge; click any entry to fly the camera to it.
• PAUSE SPIN / RESUME SPIN — freeze the station's rotation for clear screenshots.
• RESET — return to the default camera position.
• Solar arrays auto-track the Sun with a slow continuous rotation.
• Hover any module to see its name in a label sprite that tracks the module's projected screen position.

ANATOMY tab: hand-drawn schematics for 9 visiting spacecraft (Crew Dragon, Cargo Dragon, Cygnus, Soyuz MS, Progress MS, HTV-X, Starliner, Shenzhou, Tianzhou) — each shows hatch/docking, propulsion, life-support, and trunk layouts with named callouts.

Orbit-regime banner at the top reads ALT · INCL · PERIOD with Why? popovers on each value (why ~400 km, why 51.6°, why ~92 min, why 16 sunrises a day).

Lens layer: turn on the Science Lens for a microgravity axes overlay — three colour-keyed body axes (zenith/nadir, prograde/retrograde, port/starboard) drawn at the station centre with value labels at each arrow tip.

---

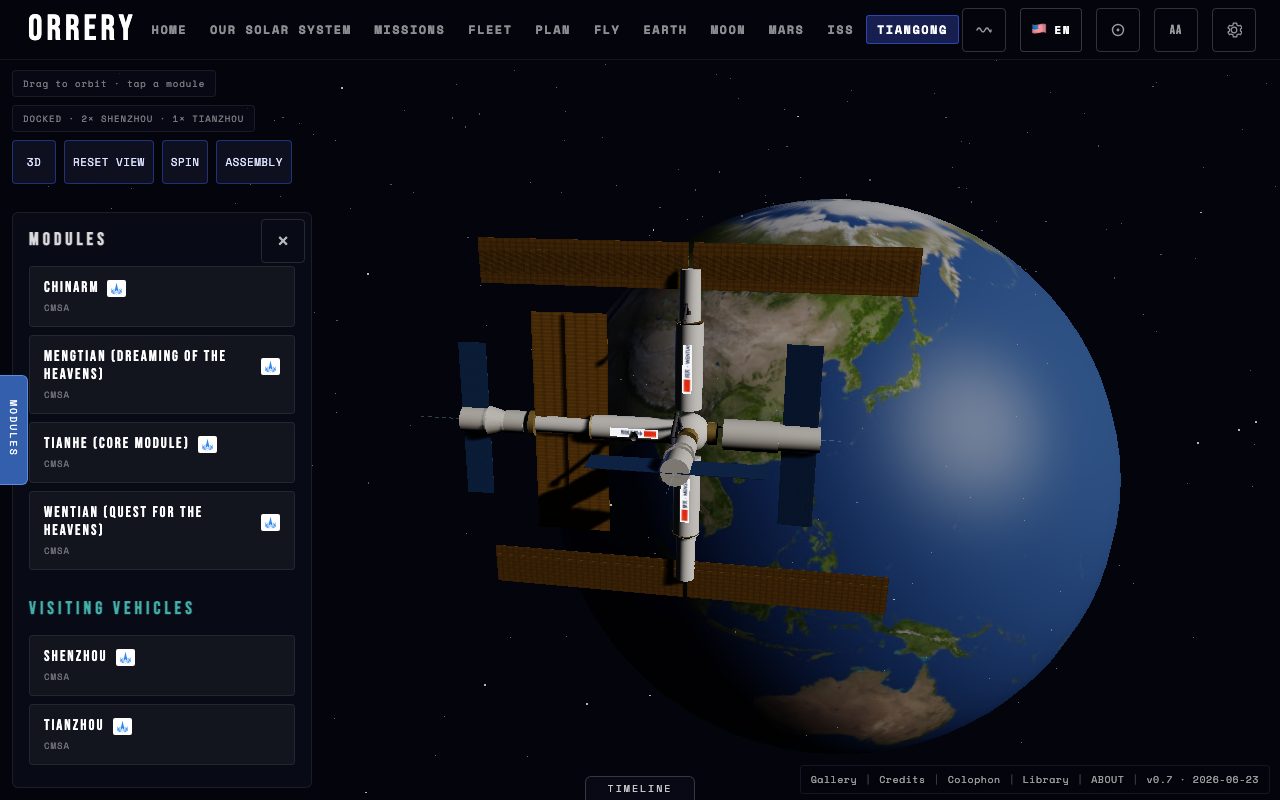

Tiangong Explorer · /tiangong

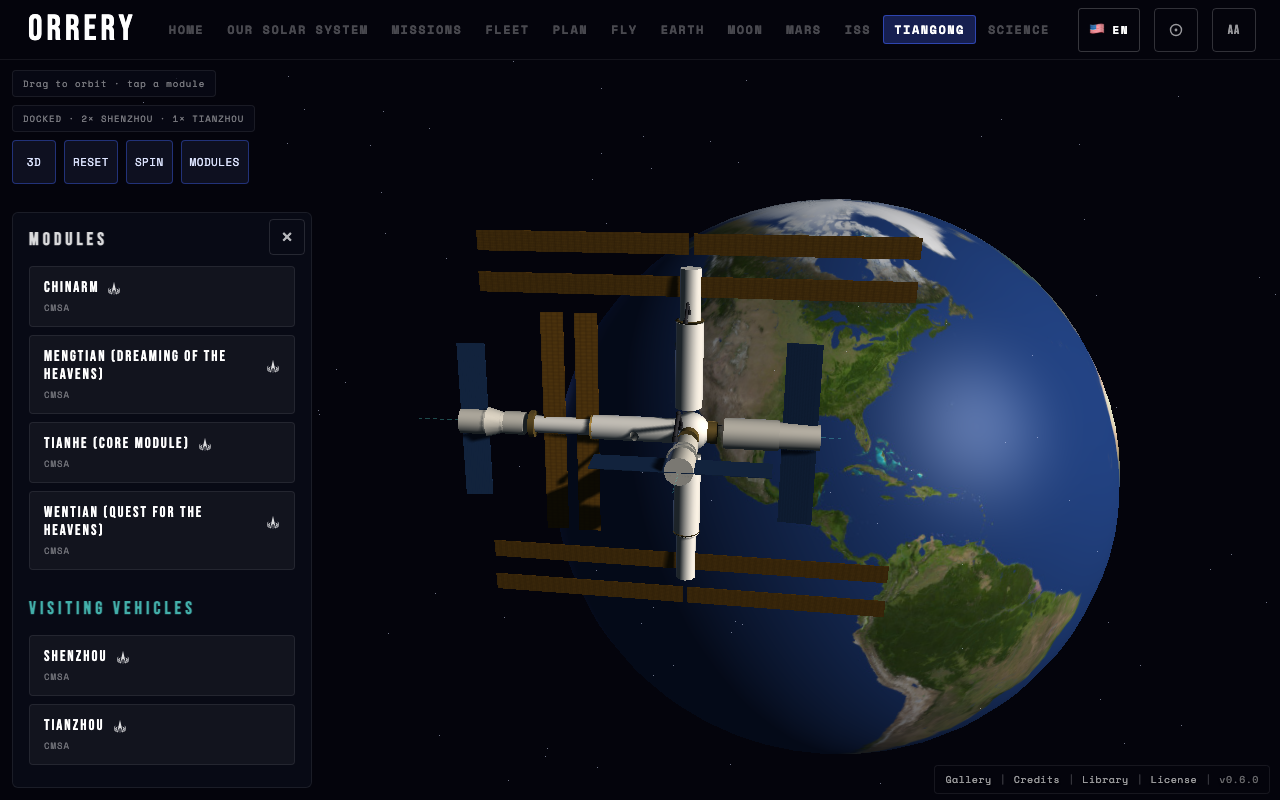

China's space station. Tianhe core + Wentian + Mengtian lab modules with sun-tracking gallium-arsenide arrays. Mirrors the /iss UX on the same shared station-geometry library.

What you can do (matches /iss interactions):

• Click any module — detail panel with same tab set as /iss.
• MODULES drawer with agency badges (CMSA · CASC).
• 2D blueprint views — 2D ▾ switches between top, side, and front orthographic projections.
• Per-module hover labels + selected-module emissive pulse.
• Microgravity axes overlay lens-gated, same as /iss.

Visiting craft (Shenzhou crewed + Tianzhou cargo) render in their docked positions.

---

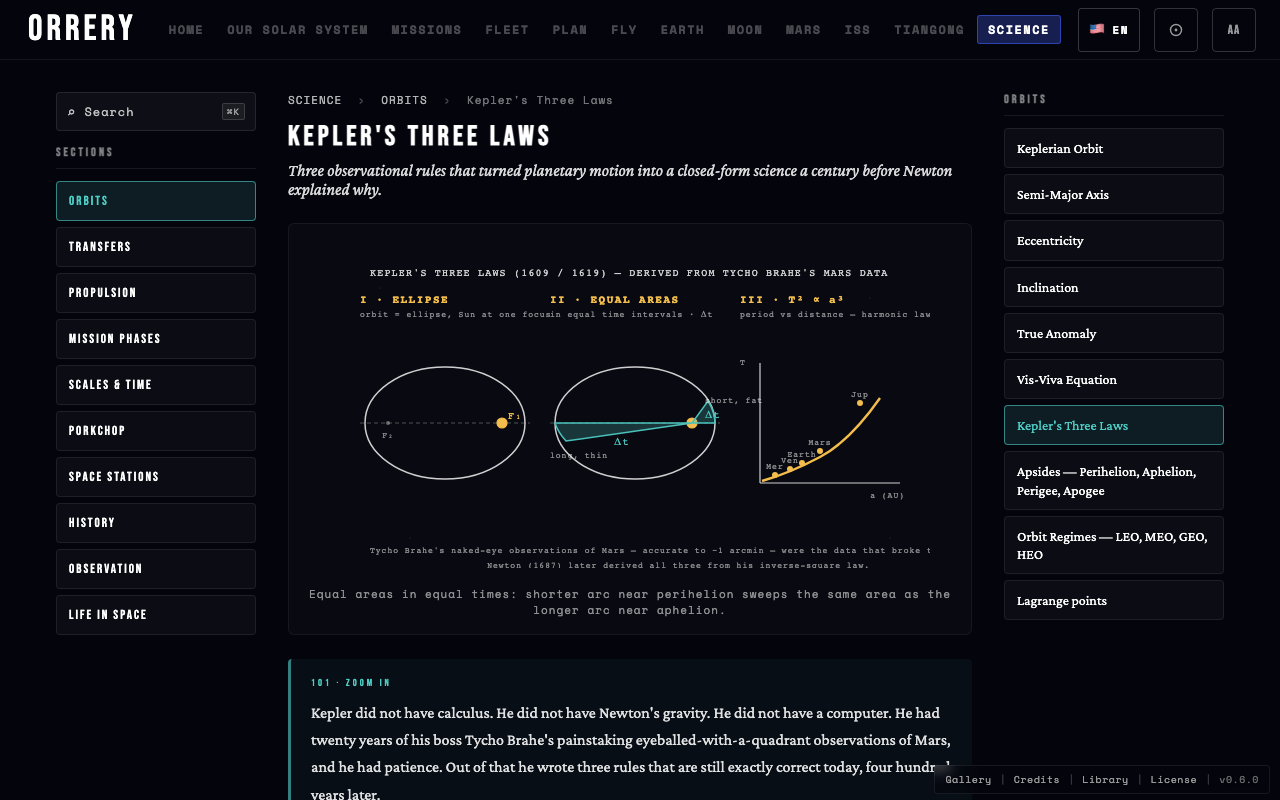

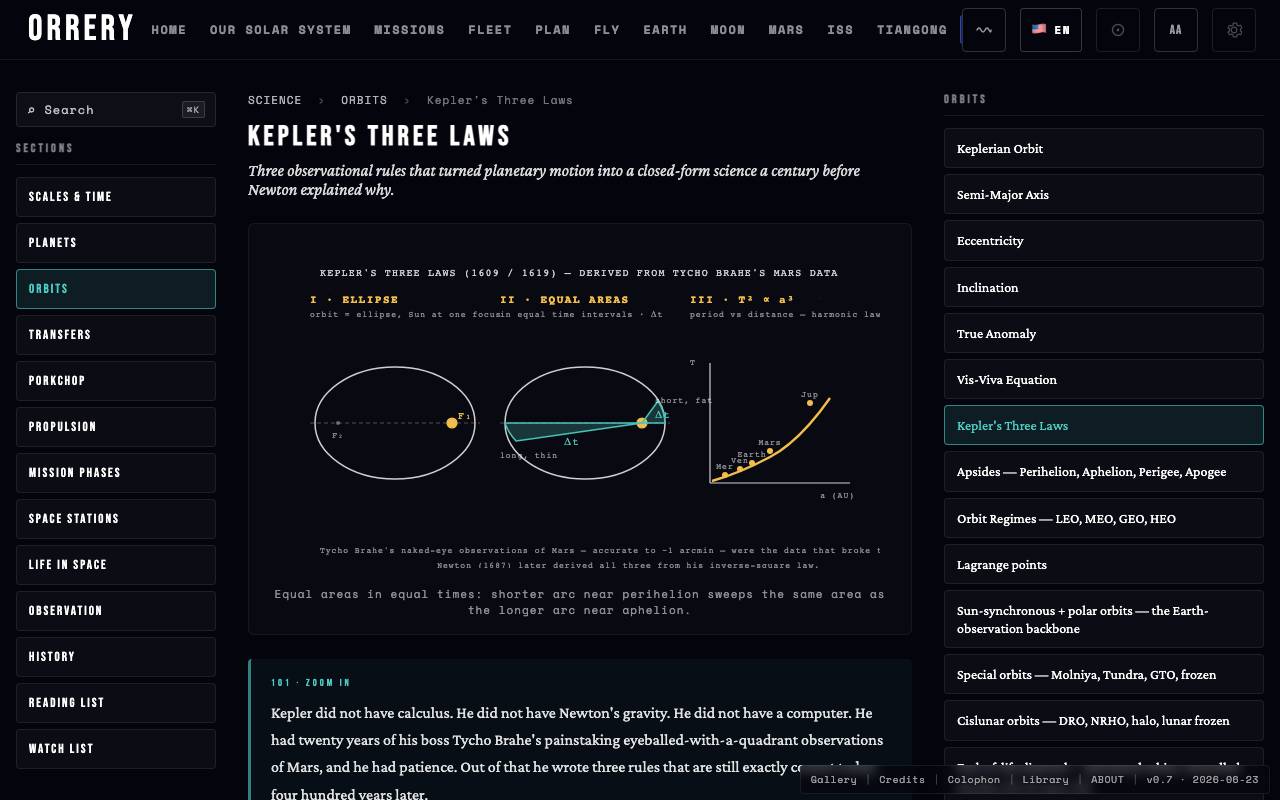

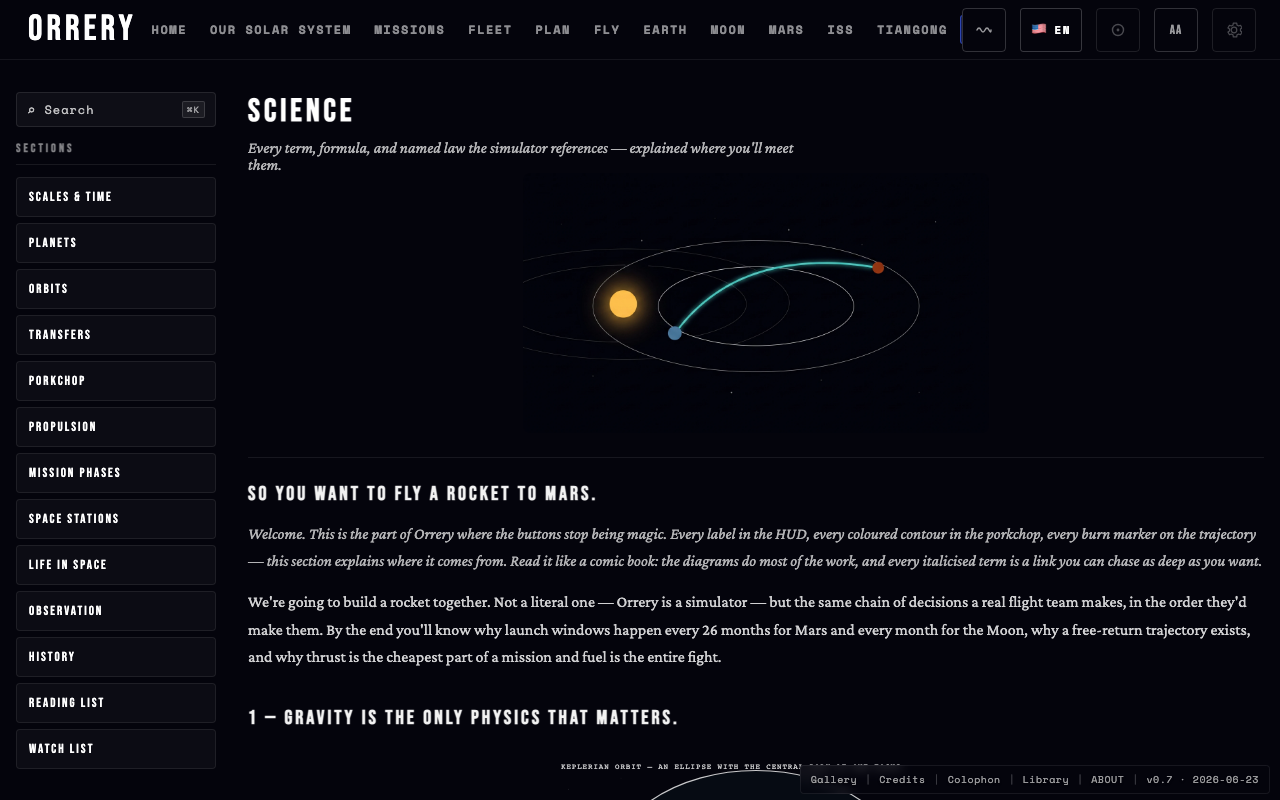

Science Encyclopedia · /science

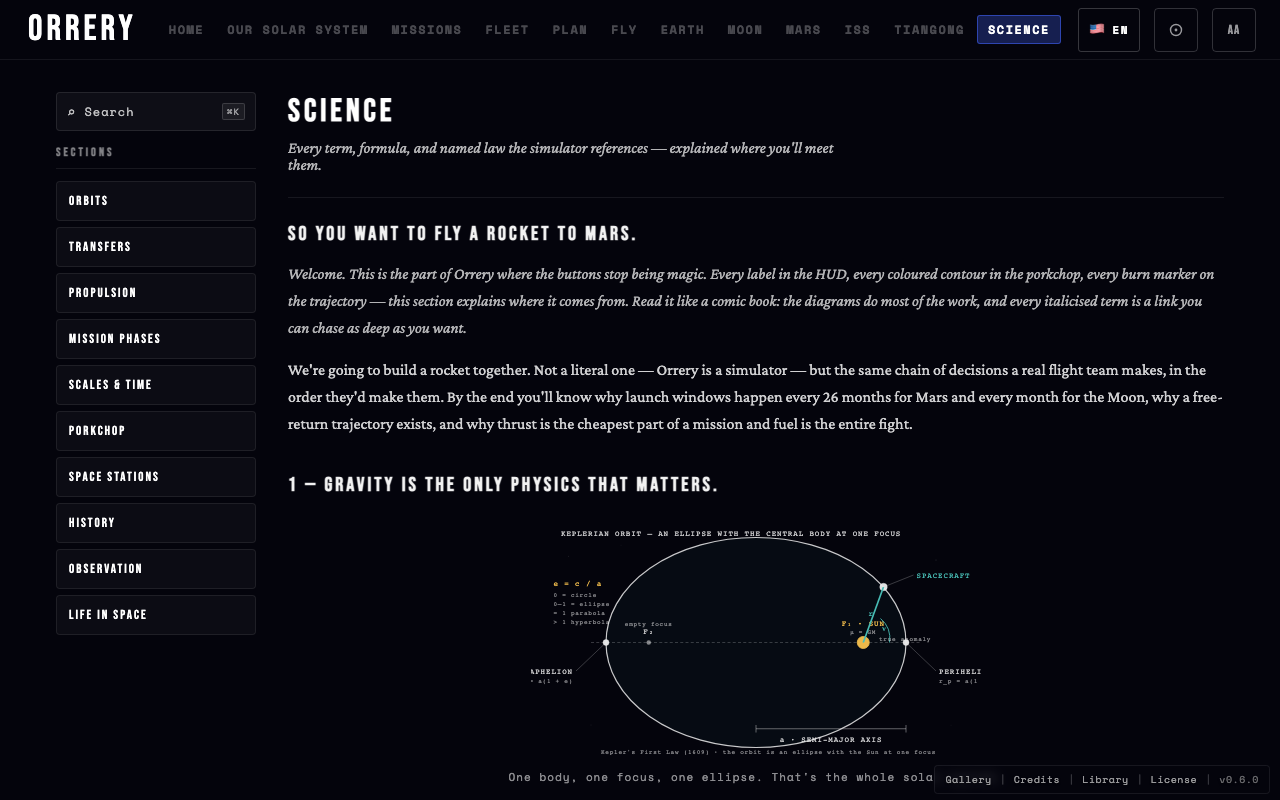

The in-app explainer for every concept the simulator visualises. 85 sections across 10 tabs, plus an 8-chapter Space-101 editorial narrative on the landing page.

Tabs:

Tab	What's in it	Sections
Orbits	Kepler's laws, vis-viva, semi-major axis, eccentricity, inclination, true anomaly, apsides, orbit regimes, Keplerian orbit, Lagrange points	10
Transfers	Hohmann, Lambert problem, transfer ellipse, free return, gravity assist, conic sections, patched conics	7
Propulsion	Tsiolkovsky equation, specific impulse, ∆v budget, C3 launch energy, V∞, Oberth effect	6
Mission Phases	Launch, trans-X injection, TCM, orbit insertion, EDL, EVA, MET, NRHO, mission types	12
Scales & Time	AU, light-minute, ecliptic plane, J2000, sidereal vs synodic, reference frames, long-duration	7
Porkchop	What is a porkchop, departure axis, time-of-flight axis, ∆v heatmap, contour reading, viability	6
Space Stations	Pressurised volume, node-module structure, solar-power budget, expedition cadence	4
History	Kepler 1609 · Newton 1687 · Tsiolkovsky 1903 · Goddard 1926 · Sputnik 1957 · Apollo 11 1969	6
Observation	Adaptive optics, black holes, coronagraphs, interferometry, space photography, spectroscopy, wormholes	7
Life in Space	Microgravity, radiation, IVA / EVA / lunar suits, long-duration life support, crew-health topics	10

What you can do:

• Click any tab in the left rail (sticky on desktop; folds to a single column on mobile).
• Right rail lists every section in the active tab; click to navigate, current section is highlighted.
• Cmd-K / Ctrl-K opens a search overlay across the entire encyclopedia — type a few letters of any concept (vis-viva, Hohmann, Kármán, etc.) and Enter navigates straight to the section.
• Cross-screen ? chips — every numeric label across /missions, /fly, /explore, /plan, /earth, /moon, /mars, /iss, /tiangong carries a ? chip that deep-links to the matching encyclopedia section.
• Why? popovers on individual values inline-explain the meaning without a route change.

Math: KaTeX server-rendered at build time per ADR-034 — the client receives static HTML, no JavaScript math library is shipped. Diagrams: 71 hand-coded SVGs (one per section + 10 tab covers; engineering blueprint style — white-on-black with teal accents) per ADR-035.

---

Provenance pages

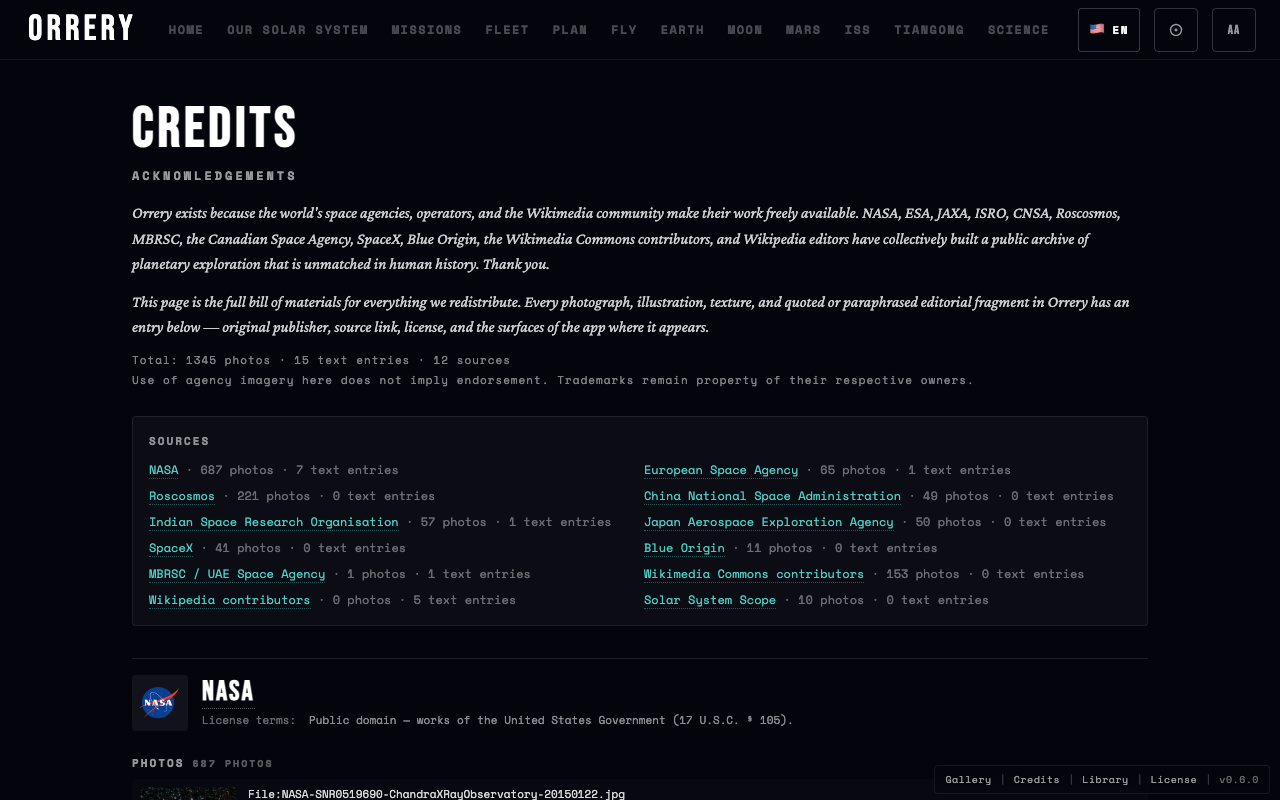

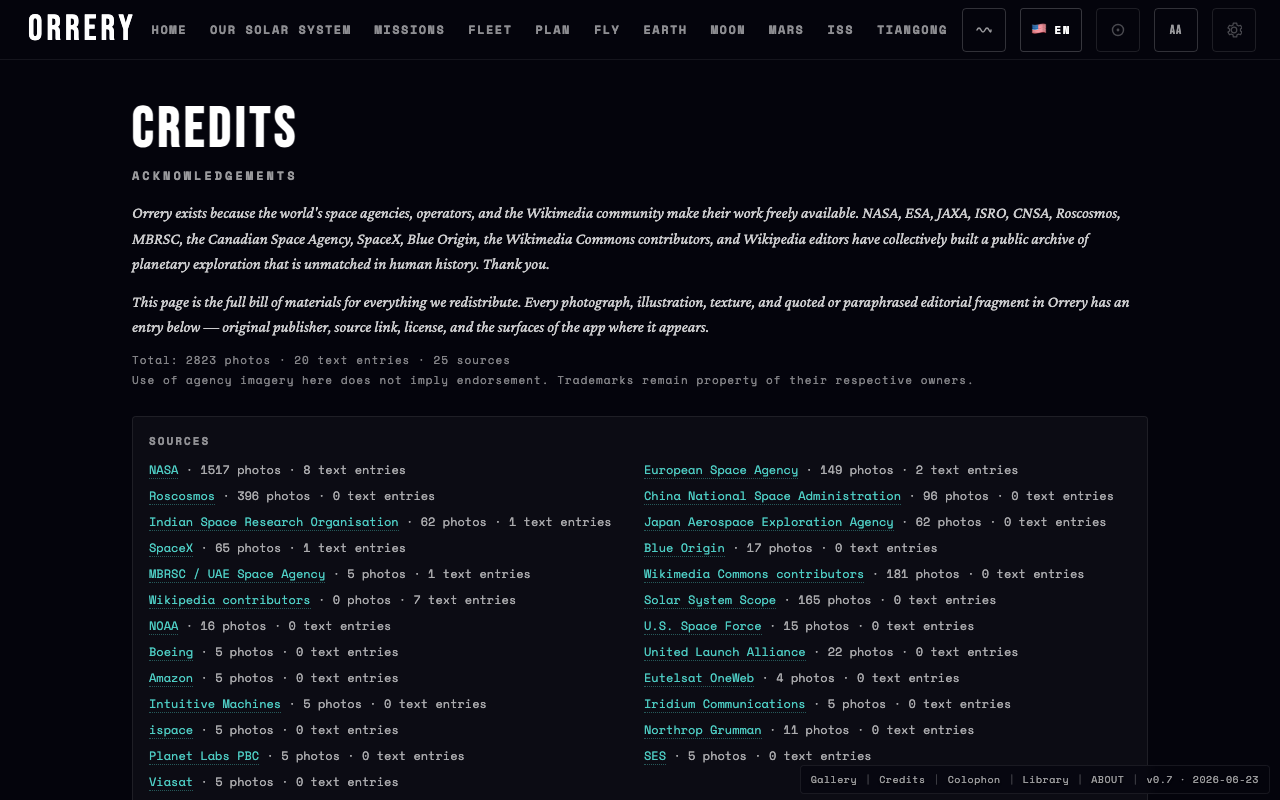

/credits — every image, text source, and logo

Public attribution page generated from static/data/image-provenance.json (auto-built by scripts/build-image-provenance.ts), static/data/text-sources.json, and static/data/source-logos.json. Every image in the app appears here with its license, source, and the original URL.

Image sourcing is agency-first per ADR-046: NASA / ESA / ISRO / CNSA / JAXA / KARI / Roscosmos before Wikimedia Commons fallback. Per-image provenance is AJV-validated and fail-closed in validate-data (per ADR-047) — adding an image without a provenance row breaks CI.

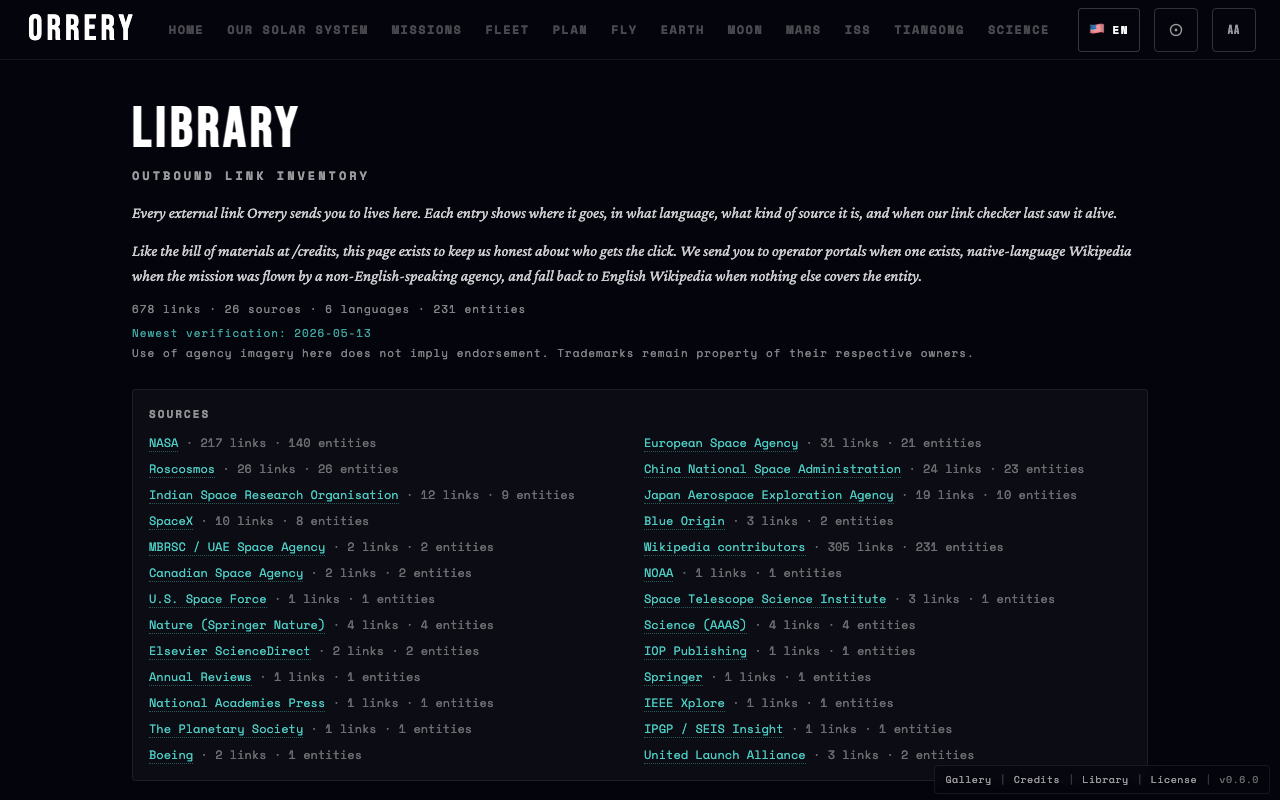

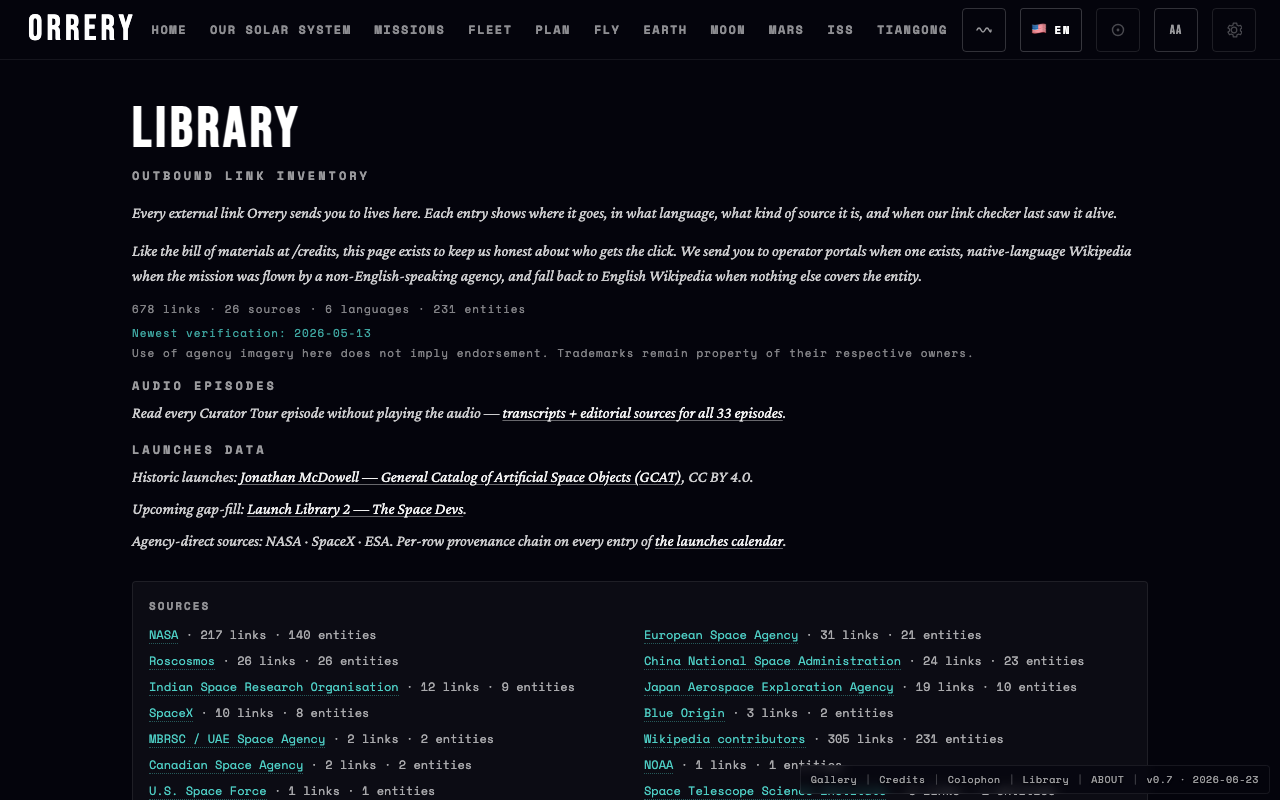

/library — every outbound LEARN link

Bill-of-links across the entire app. Each external link the app exposes (in panel LEARN tabs, /science references, /credits source URLs) appears here with its provenance row: source agency, language, freshness check date, status.

Link policy is agency-first, native-language priority per ADR-051: for non-US entities, the operator's own page (in their own language) wins over the NASA mirror. Roscosmos before Wikipedia. ISRO before press releases. The link-checker (scripts/check-learn-links.ts) is chained into npm run fetch so dead links are flagged before they ship.

---

Mobile

Every screen works at 375 px width. Touch targets are 44×44 px minimum. Bottom-sheet panels swipe down to dismiss. The porkchop magnifier loupe is mobile-only (long-press on the plot).

The PWA manifest is shipped — install Orrery as a standalone app via the browser menu (Chrome / Safari / Firefox all support this; the in-app install nag is intentionally suppressed per ADR-029).

---

Privacy

• No analytics.
• No tracking.
• No cookies.
• No localStorage.
• No third-party fonts, images, or scripts loaded at runtime — every asset is bundled at build time per ADR-016.

The only state that persists across sessions is what's in the URL (?lang=, ?mission=, ?dest=, etc.) and the service-worker cache (so the app works offline after the first load).

---

Troubleshooting

The 3D scene is empty. Most likely WebGL is disabled in your browser. Try a different browser or enable WebGL.

The 3D scene drops to a list view. /iss and /tiangong auto-fall back to a module list when measured FPS drops below 20 (typically on integrated GPUs running with software rasterisation). Reload — sometimes the first paint is slower than later runs.

Images don't load. Either you're offline before the service worker has cached them, or the agency image API is rate-limiting. Reload after a minute; cached images persist.

A translation looks weird. All 14 locales now ship at 100% UI parity AND full editorial overlay coverage as of v0.6.x. If a string reads off, file an issue; the i18n style guide is the binding source of truth per ADR-033.

Missions render outside the camera. Moon missions render in a dedicated cislunar view at true Earth-Moon scale (ADR-058); interplanetary missions render heliocentrically with an auto-zoom that pulls in at departure and arrival. Drag to pan; scroll to zoom — manual zoom wins over auto-zoom until the next phase transition.

A linked external page is dead. File an issue or PR — the provenance manifest at static/data/link-provenance.json is the source of truth and welcomes corrections. Run npm run check-learn-links -- --update to regenerate the freshness gates.

---

Where to next

• 02 Project Concept — the complete synthesis of what Orrery is.
• 03 Data Catalog — every constant, every source, mission schema, credit format.
• i18n style guide — the binding glossary for translators.
• AGENTS.md in the repo root — engineering constraints if you're contributing code (visible on GitHub: https://github.com/chipi/orrery/blob/main/AGENTS.md). Tool-specific overlays for Claude Code and Cursor live in CLAUDE.md and .cursor/rules/orrery.mdc respectively, both of which point back at this file.
• In-app: open the /science encyclopedia and read the Space-101 narrative on the landing page — an 8-chapter primer that takes you from "what is an orbit" to "how a Hohmann transfer works" with no jargon.
