Mask shapes from words

Companion to RFC-029 / ADR-084. The build-by-words mapping for the agent: spatial English on the left, the mask_spec dict on the right. Sister to the mask-applicable-controls.md guide — that one tells you which primitive you can apply through a mask; this one tells you how to construct the mask from a phrase.

When to use this

The agent calls apply_primitive with an inline mask_spec argument when the photographer's intent is spatial — affect a region, not just a tonal range. "Lift the bottom third by half a stop" is spatial. "Lift the shadows" is tonal (no mask needed; the primitive's parameter handles it).

This guide gives you a stable vocabulary so the same phrase produces the same mask_spec across sessions. It's not exhaustive — the agent's job is to reason about what the photographer actually means and pick parameters accordingly. Treat the table as a foundation; extrapolate when the phrase doesn't match exactly.

Coordinate system

All mask coordinates are normalized to [0, 1] in image space:

  • x = 0 is the left edge, x = 1 is the right edge
  • y = 0 is the top edge, y = 1 is the bottom edge

Origin is top-left, matching darktable's convention. Coordinates are unitless — the same mask_spec applies to a 4000×3000 photo and a 1024×768 thumbnail identically.

Shape choice: rectangle vs gradient vs ellipse vs path

Intent Shape Why
Hard edge ("the bottom third, no feathering") rectangle Sharp boundary, full opacity inside, zero outside
Smooth transition ("a gentle fade from top") gradient Linear falloff across the image; one side bright, other dark
Circular subject region ("around the face") ellipse Radial falloff with feathering; tracks circular subjects
Arbitrary outline ("the silhouette of the fish") path N-vertex closed polygon; usually from RFC-026 AI subject detection or human-supplied vertices

Two questions guide the choice:

  1. Does the intent describe a half-plane or a region? Half-plane → gradient. Region → rectangle / ellipse / path.
  2. Should the boundary be hard or feathered? Hard → rectangle. Feathered → gradient (for half-plane) or ellipse (for region) or path-with-border.

If the photographer says "the bottom third" without qualifying, default to gradient (it's almost always what they mean — a smooth transition feels natural).

Phrase → spec table

Halves and thirds (gradients)

Phrase Spec
"Bottom half" / "lower half" {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.5, rotation: 180, compression: 0.5, state: 2}} (light side is bottom; rotation 180 = horizontal axis with light below)
"Top half" / "upper half" {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.5, rotation: 0, compression: 0.5, state: 2}} (rotation 0 = light side on top — verified against shipped gradient_top_dampen_highlights)
"Bottom third" {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.67, rotation: 180, compression: 0.5, state: 2}}
"Top third" {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.33, rotation: 0, compression: 0.5, state: 2}}
"Bottom quarter" {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.75, rotation: 180, compression: 0.5, state: 2}}
"Top quarter" {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.25, rotation: 0, compression: 0.5, state: 2}}
"Left half" {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.5, rotation: 90, compression: 0.5, state: 2}} (rotation 90 = vertical axis, light side on left)
"Right half" {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.5, rotation: 270, compression: 0.5, state: 2}}
"Left third" {dt_form: "gradient", dt_params: {anchor_x: 0.33, anchor_y: 0.5, rotation: 90, compression: 0.5, state: 2}}
"Right third" {dt_form: "gradient", dt_params: {anchor_x: 0.67, anchor_y: 0.5, rotation: 270, compression: 0.5, state: 2}}

Hard-edged regions (rectangles)

Use rectangles when the photographer wants a crisp boundary, not a smooth fade. Common in cinematic crops, letterbox effects, and "exactly this region."

Phrase Spec
"Bottom third (hard edge)" {dt_form: "rectangle", dt_params: {x0: 0, y0: 0.67, x1: 1, y1: 1, border: 0.0}}
"Top half (hard edge)" {dt_form: "rectangle", dt_params: {x0: 0, y0: 0, x1: 1, y1: 0.5, border: 0.0}}
"Center horizontal band" {dt_form: "rectangle", dt_params: {x0: 0, y0: 0.33, x1: 1, y1: 0.67, border: 0.0}}
"Letterbox top band (10%)" {dt_form: "rectangle", dt_params: {x0: 0, y0: 0, x1: 1, y1: 0.1, border: 0.0}}
"Letterbox bottom band (10%)" {dt_form: "rectangle", dt_params: {x0: 0, y0: 0.9, x1: 1, y1: 1, border: 0.0}}
"Center square" {dt_form: "rectangle", dt_params: {x0: 0.25, y0: 0.25, x1: 0.75, y1: 0.75, border: 0.02}}
"Upper-left quadrant" {dt_form: "rectangle", dt_params: {x0: 0, y0: 0, x1: 0.5, y1: 0.5, border: 0.0}}

Circles / ellipses (subject-centered regions)

Use ellipses for "around the X" — face, subject, focal point. Default to feathering (border: 0.05 or higher) to avoid hard circular edges.

Phrase Spec
"Center circle, small" {dt_form: "ellipse", dt_params: {center_x: 0.5, center_y: 0.5, radius_x: 0.15, radius_y: 0.15, border: 0.05}}
"Center circle, medium" {dt_form: "ellipse", dt_params: {center_x: 0.5, center_y: 0.5, radius_x: 0.3, radius_y: 0.3, border: 0.08}}
"Center circle, large" {dt_form: "ellipse", dt_params: {center_x: 0.5, center_y: 0.5, radius_x: 0.45, radius_y: 0.45, border: 0.1}}
"Subject upper-left rule-of-thirds" {dt_form: "ellipse", dt_params: {center_x: 0.33, center_y: 0.33, radius_x: 0.2, radius_y: 0.2, border: 0.06}}
"Subject upper-right rule-of-thirds" {dt_form: "ellipse", dt_params: {center_x: 0.67, center_y: 0.33, radius_x: 0.2, radius_y: 0.2, border: 0.06}}
"Subject lower-left rule-of-thirds" {dt_form: "ellipse", dt_params: {center_x: 0.33, center_y: 0.67, radius_x: 0.2, radius_y: 0.2, border: 0.06}}
"Subject lower-right rule-of-thirds" {dt_form: "ellipse", dt_params: {center_x: 0.67, center_y: 0.67, radius_x: 0.2, radius_y: 0.2, border: 0.06}}
"Tall narrow oval (portrait subject)" {dt_form: "ellipse", dt_params: {center_x: 0.5, center_y: 0.5, radius_x: 0.2, radius_y: 0.4, border: 0.08}}
"Wide flat oval (landscape mid-band)" {dt_form: "ellipse", dt_params: {center_x: 0.5, center_y: 0.5, radius_x: 0.45, radius_y: 0.15, border: 0.08}}

Diagonals (rotated gradients)

Less common but useful for off-axis lighting situations.

Phrase Spec
"Diagonal, top-left dim" (light side bottom-right) {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.5, rotation: 225, compression: 0.5, state: 2}}
"Diagonal, top-right dim" (light side bottom-left) {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.5, rotation: 135, compression: 0.5, state: 2}}
"Diagonal, bottom-left dim" (light side top-right) {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.5, rotation: 315, compression: 0.5, state: 2}}
"Diagonal, bottom-right dim" (light side top-left) {dt_form: "gradient", dt_params: {anchor_x: 0.5, anchor_y: 0.5, rotation: 45, compression: 0.5, state: 2}}

Polygons (paths)

Path forms come from two sources: AI subject detection (RFC-026) and human-supplied vertex lists. The agent doesn't typically construct paths from words — it receives them from a provider tool or from explicit photographer input.

// Triangle in the upper half (programmatic example)
{
    "dt_form": "path",
    "dt_params": {
        "vertices": [[0.5, 0.1], [0.8, 0.4], [0.2, 0.4]],
        "border": 0.04
    }
}

When RFC-026 lands, the AI provider returns a polygon for "the fish" / "the person face" / etc.; the agent wraps it as a path-form mask_spec and applies primitives through it.

Parameter cheat sheet

Gradient (dt_form: "gradient")

  • anchor_x, anchor_y: where the gradient line crosses (the 50% point of the falloff). For a "bottom third" gradient, anchor_y = 0.67 puts the transition line ⅔ down.
  • rotation (degrees): orientation of the gradient axis. 0 = horizontal axis with the light side on top (verified against shipped gradient_top_dampen_highlights); 90 = vertical axis with light side on the left; 180 = horizontal with light on the bottom; 270 = vertical with light on the right. Rotate by 45° for diagonals (e.g., 45 = light on bottom-right).
  • compression (default 0.5 for image-spanning thirds/halves): controls falloff width. 0.5 = sharper transition (half the image, recommended for crisp third/half regions); 1.0 = full-image falloff (very smooth); 2.0 = extends beyond image edges (extremely soft).
  • state (default 2 = sigmoidal): 1 = linear falloff (sharp), 2 = sigmoidal (smooth, recommended for natural-looking masks).

Ellipse (dt_form: "ellipse")

  • center_x, center_y: ellipse center, normalized [0, 1].
  • radius_x, radius_y: ellipse half-widths. Equal values = circle. 0.15 is a small mask, 0.45 is a large one.
  • border (default 0.05): feathering width. 0.0 = hard edge (rare for circles); 0.05–0.10 = natural feathering; >0.15 = very soft.
  • rotation (default 0): rotation in degrees. Only relevant for non-circular ellipses.
  • flags (default proportional): 1 = border scales with shape; 0 = border is a fixed pixel distance (rarely needed).

Rectangle (dt_form: "rectangle")

  • x0, y0: top-left corner.
  • x1, y1: bottom-right corner.
  • border (default 0.02): feathering applied to all sides. 0.0 = hard edge; 0.02 = subtle softening.

Path (dt_form: "path")

  • vertices: list of [x, y] pairs, normalized [0, 1], closed implicitly (last connects to first).
  • border (default 0.02): feathering uniform on all sides.
  • Minimum 3 vertices. Typical AI-subject masks have 50–500 vertices after Douglas-Peucker simplification at the provider boundary (RFC-026).

Refining masks with range filters (RFC-024 / ADR-085)

The shapes above describe the region of an image to affect. Sometimes that's not enough — the photographer wants "the bottom third but only the dark pixels" or "the subject but only the warm tones." Pixel-level refinement happens via the optional range_filter field on mask_spec.

mask_spec = {
    // Spatial component (optional)
    "dt_form": "gradient",
    "dt_params": {"anchor_y": 0.67, "rotation": 180, "compression": 0.5, "state": 2},

    // Pixel-level refinement (optional)
    "range_filter": {
        "kind": "luminance",     // or "color_h" / "color_s" / "color_l"
        "min": 0.0,              // band lower bound, [0..1]
        "max": 0.3,              // band upper bound, [0..1]
        "feather": 0.05,         // ramp width on each edge
        "invert": false          // true = OUTSIDE the range becomes the mask
    }
}

Three valid combinations

dt_form range_filter What you get
present absent drawn mask only — affects the spatial region (RFC-029 / ADR-084)
absent present parametric mask only — affects all pixels matching the range, anywhere
present present drawn AND parametric (intersection) — affects pixels matching the range, within the spatial region

The third combination is the workflow you usually want: "lift the bottom third's shadows" = drawn gradient bottom-third + luminance shadows filter. The drawn mask localizes; the range filter selects which pixels in that locale receive the edit.

range_filter.kind options

kind What it filters on Notes
luminance Pixel brightness, [0..1] Universal — works in any color space. Most common.
color_h HSL hue, [0..1] (red≈0, green≈0.33, blue≈0.66) Sets blend_cst to HSL automatically
color_s HSL saturation, [0..1] Mute saturated colors / preserve only desaturated, etc.
color_l HSL lightness Different from luminance; HSL-specific lightness channel

range_filter.{min, max, feather} mapping

The agent provides a band; the encoder constructs a 4-control-point trapezoid:

  • Below min - feather: outside (mask = 0)
  • min - feather → min: ramp up (0 → 1)
  • min → max: inside (mask = 1)
  • max → max + feather: ramp down (1 → 0)
  • Above max + feather: outside (mask = 0)

feather: 0 gives hard edges (rare); feather: 0.05–0.10 gives natural soft transitions; feather: 0 with sharp min == max is essentially a single-tone selection.

Example refinement phrases

Phrase Spec
"Lift the bottom third's shadows" {dt_form: "gradient", dt_params: {anchor_y: 0.67, rotation: 180, compression: 0.5, state: 2}, range_filter: {kind: "luminance", min: 0.0, max: 0.3, feather: 0.05}}
"Brighten the highlights of the subject" {dt_form: "ellipse", dt_params: {center_x: 0.5, center_y: 0.5, radius_x: 0.3, radius_y: 0.3, border: 0.08}, range_filter: {kind: "luminance", min: 0.7, max: 1.0, feather: 0.05}}
"Deepen the blue tones in the upper half" {dt_form: "gradient", dt_params: {anchor_y: 0.5, rotation: 0, compression: 0.5, state: 2}, range_filter: {kind: "color_h", min: 0.55, max: 0.7, feather: 0.05}}
"Mute the saturated reds in the photo" (no spatial mask) {range_filter: {kind: "color_s", min: 0.6, max: 1.0, feather: 0.05}} (parametric only — no dt_form)
"Affect everything except the shadows" (invert) {range_filter: {kind: "luminance", min: 0.0, max: 0.3, feather: 0.05, invert: true}}

When to combine vs. when to use just one

  • Just dt_form: when the intent is purely spatial — "the bottom third," "around the subject," "the upper-left corner."
  • Just range_filter: when the intent is purely tonal/color — "all the dark pixels," "all the blues," regardless of where they are.
  • Both: when the intent is "this region's specific pixels" — the most common Lightroom range-mask use case. Compose with AND (intersection); the edit applies only where both conditions are true.

Visual reference

Each row below renders exposure +1.0 through one shape from the table above, against the synthetic grayscale ramp. The brightened region reveals where the mask is on; everything else stays at the ramp's baseline tone.

Reference renders for visual comparison:

Reference Description
baseline Baseline ramp — no effect, no mask. The unmodified target.
uniform expo+1.0 with no mask — uniform brightening everywhere. The "fully on" reference.

Per-shape renders:

Phrase Notes Render

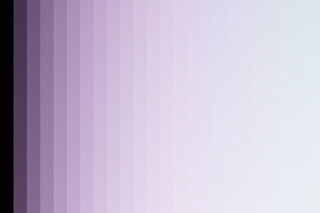

"Bottom third" (gradient) anchor_y=0.67, rotation=180. Light side covers bottom ⅓. bottom-third-gradient

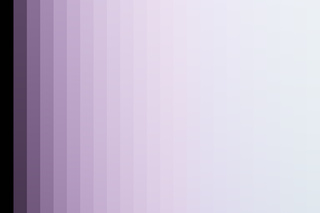

"Top half" (gradient) anchor_y=0.5, rotation=0. Light side covers top half. top-half-gradient
"Left half" (gradient) rotation=90, vertical axis. Light side covers left half. left-half-gradient
"Right half" (gradient) rotation=270, vertical axis. Light side covers right half. right-half-gradient

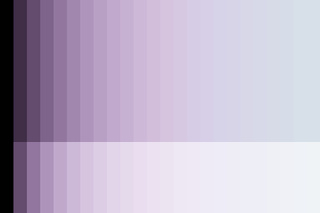

"Bottom third (hard edge)" (rectangle) x0=0, y0=0.67, x1=1, y1=1. Hard-edged bottom ⅓. bottom-third-rectangle

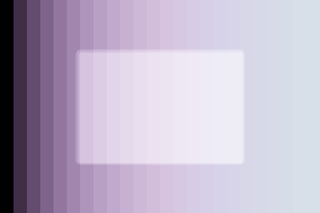

"Center square" (rectangle) 50% x 50% center square with subtle feathering. center-square-rectangle

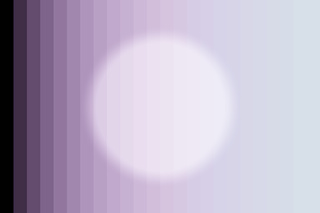

"Center circle, medium" (ellipse) center=(0.5, 0.5), radius=0.3, border=0.08. center-circle-medium-ellipse

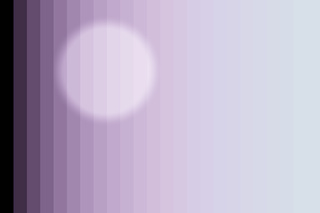

"Subject upper-left rule-of-thirds" (ellipse) center=(0.33, 0.33), radius=0.2 - subject region at top-left intersection. upper-left-thirds-ellipse

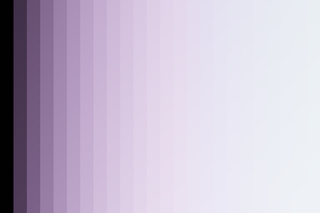

"Diagonal, top-left dim" (gradient, light bottom-right) rotation=225, diagonal axis. Light side bottom-right. diagonal-bottom-right-light-gradient

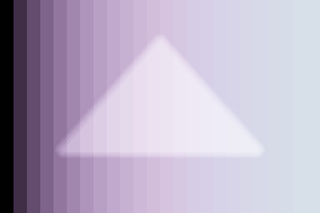

Centered triangle (path) 3-vertex closed polygon. RFC-026 substrate; same wire AI subject masks will use. centered-triangle-path
Parametric only: "all dark pixels" (luminance shadows) range_filter only (no dt_form). Affects the dark third of the tonal range anywhere in the image. range-luminance-shadows-only

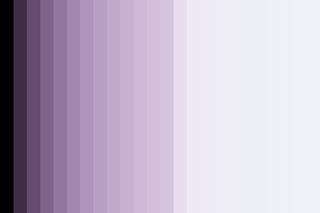

Parametric only: "all bright pixels" (luminance highlights) range_filter only. Affects the upper third of the tonal range — useful for highlight recovery / dampening. range-luminance-highlights-only
Inverted: "everything except shadows" range_filter with invert=true. Same shadow band, but pixels OUTSIDE that band get the mask (= midtones + highlights). range-luminance-shadows-inverted

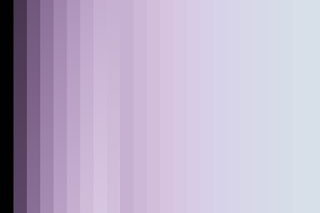

Drawn + parametric: "shadows in the bottom half" Drawn gradient (bottom half) + luminance shadows filter. Edit applies only where BOTH conditions are true: pixel is in bottom half AND pixel is dark. The user's mental model of refining a drawn mask down to specific pixels. range-drawn-bottom-half-shadows

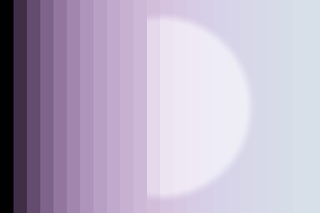

Drawn + parametric: "highlights inside subject ellipse" Drawn ellipse + luminance highlights filter. Brightens only the bright pixels inside the subject region — useful for catching catchlights without blowing out the midtones. range-drawn-ellipse-highlights

These renders are produced by scripts/generate-mask-shapes-gallery.py. Refresh after changing the spec table above; CI does not regenerate them automatically.

See also

  • Mask-applicable controls — which vocabulary primitive can be applied through a mask
  • Authoring vocabulary entries — for permanently baking a mask + primitive composition into the manifest
  • ADR-076 (drawn-mask only architecture)
  • ADR-084 (apply-time mask spec semantics; closes RFC-029)
  • RFC-026 (AI mask provider scaffolding; how AI subject detection produces path-form masks)
  • src/chemigram/core/masking/dt_serialize.py (the wire encoder for all four shapes)
